Description

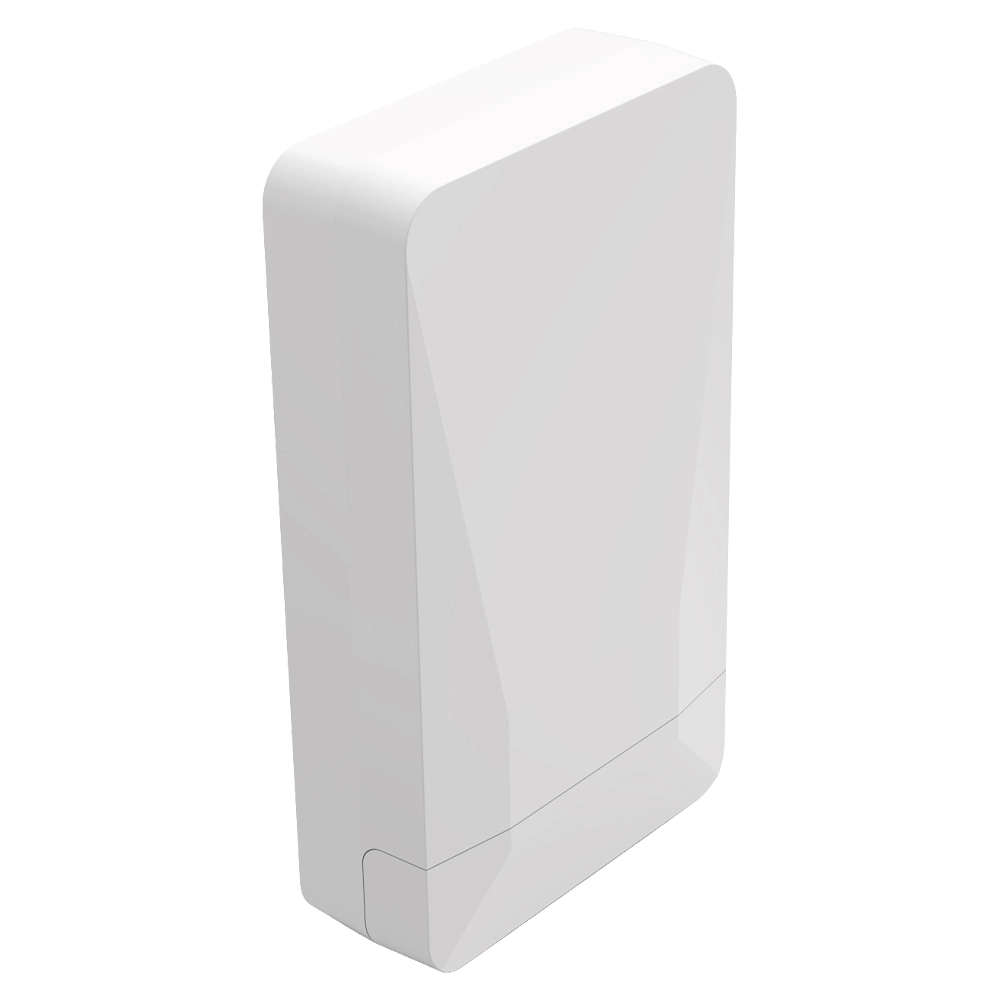

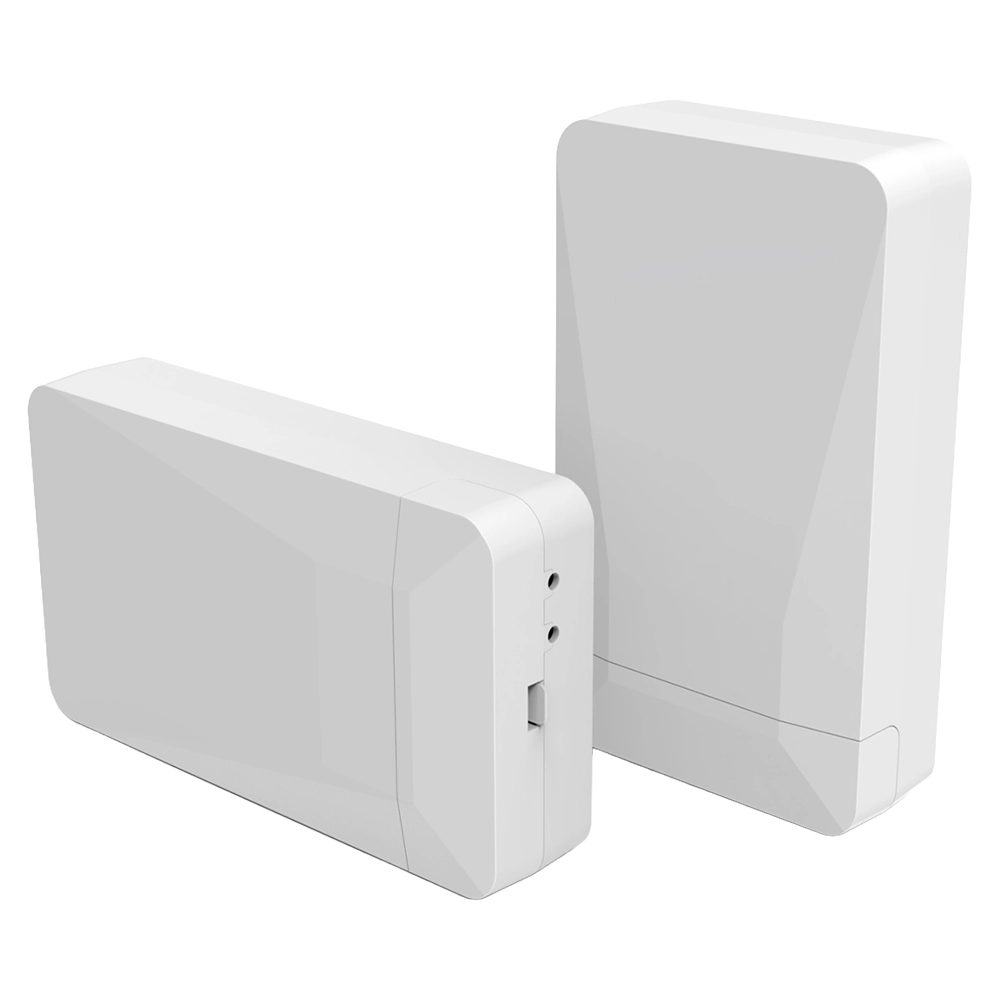

24V/1A POE IP65 OpenWRT 21.02 eSIM optional outdoor 5g cellular router

Item no.

HOR300

CPU

MTK T750, ARM Cortex-A55, quad core, up to 2.0 GHz

Frequency bands

Version E

5G NR:

5G Sub-6: n1/3/5/7/8/20/28/38/40/41/77/78

LTE FDD: B1/3/5/7/8/20/28

LTE TDD: B38/40/41/42/43

WCDMA: B1/5/8

MIMO:

5G NR: DL 4×4 MIMO: n1/3/7/38/40/41/77/78

UL 2×2 MIMO: n40/41/77/78

LTE: DL 4×4 MIMO:B1/3/7/28/38/40/41/42/43

Version NA

5G Sub-6:n2/5/7/12/14/25/30/41/48/66/71/77/78

LTE FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71

LTE TDD: B41/48

LAA: B46

WCDMA: B2/4/5

MIMO:

5G NR:DL 4×4 MIMO: n2/7/25/30/41/48/66/77/78

UL 2×2 MIMO: n41/77/78

LTE: DL 4×4 MIMO:B2/4/7/25/30/41/48/66

Version LA

NR: n5/7/8/20/28/38/40/41/77/78/71

LTE FDD: B2/4/5/7/8/20/25/28/66/71/48

LTE TDD: B38/40/41/42/43

WCDMA: B2/4/5/8

NR: DL 4×4 MIMO: n7/38/40/41/77/78

UL 2×2 MIMO: n41/77/78

LTE DL 4×4MIMO:B2/4/7/25/32/38/40/41/42/43/66

Frequency can be order make

Data rates

5G NSA. Max 4.47Gbps (DL)/738Mbps (UL)

5G SA. Max  maximum 4.67Gbps (DL)/1.25Gbps (UL)

LTE. Max 1.6Gbps (DL)/211Mbps (UL)

HSPA+. Max 42Mbps (DL)/ 11.5Mbps (UL)

WCDMA Max 384Kbps (DL)/384Kbps (UL)

5G NR features

3GPP Release 15

Supported modulations:

Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM, 200MHz 2 UL CA

Downlink: QPSK, 16QAM, 64QAM and 256QAM, 200MHz 2 DL CA

Supported SCS: 15kHz 2 and 30kHz 2

SA 3 and NSA 3 operation modes supported on all the 5G band

Option 3x, 3a, 3 and Option 2

LTE features

3GPP Release 15

LTE Category: DL Cat 19/ UL Cat 18

Supported modulations

Uplink: QPSK, 16QAM and 64QAM and 256QAM, 40MHz 2 ULCA

Downlink: QPSK, 16QAM and 64QAM and 256QAM, 100MHz 5 DLCA

Supports 1.4/3/5/10/15/20 MHz RF bandwidth

UMTS features

3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA

Supported modulations. QPSK, 16QAM and 64QAM

Receiving Sensitivity

5G NR-FDD n1(20MHz), -94.3 dBm

5G NR-FDD n2(20MHz), -94.3 dBm

5G NR-FDD n3(20MHz), -94.5 dBm

5G NR-FDD n5(10MHz), -95.5 dBm

5G NR-FDD n7(20MHz), -94.7 dBm

5G NR-FDD n8(20MHz), -96.2 dBm

5G NR-FDD n12(15MHz), -96.7 dBm

5G NR-FDD n13(10MHz), -97.6 dBm

5G NR-FDD n14(10MHz), -98.7 dBm

5G NR-FDD n18(15MHz), -98 dBm

5G NR-FDD n20(20MHz), -96.9 dBm

5G NR-FDD n25(20MHz), -94.6 dBm

5G NR-FDD n26(20MHz), -95 dBm

5G NR-FDD n28(20MHz), -96 dBm

5G NR-TDD n38(20MHz), -93.4 dBm

5G NR-TDD n40(20MHz), -93.8 dBm

5G NR-TDD n41(100MHz), -85.8 dBm

5G NR-TDD n66(40MHz), -92.3 dBm

5G NR-TDD n71(20MHz), -96.5 dBm

5G NR-TDD n77(100MHz), -87.4 dBm

5G NR-TDD n78(100MHz), -87.8 dBm

LTE-FDD B1(10MHz), -97.3 dBm

LTE-FDD B3(10MHz), -97.6 dBm

LTE-FDD B5(10MHz), -100.3 dBm

LTE-FDD B7(10MHz), -97.1 dBm

LTE-FDD B8(10MHz), -99.7 dBm

LTE-FDD B20(10MHz), -100.5 dBm

LTE-FDD B28(10MHz), -99.7 dBm

LTE-FDD B32(10MHz), -97.3 dBm

LTE-TDD B38(10MHz), -95.7 dBm

LTE-TDD B40(10MHz), -96.6 dBm

LTE-TDD B41(10MHz), -95.7 dBm

LTE-TDD B42(10MHz), -96.8 dBm

LTE-TDD B43(10MHz), -97.1 dBm

WCDMA B1, -109 dBm

WCDMA B5, -111 dBm

WCDMA B8, -112dBm

Transmitting Power

Class 3 (24dBm+1/-3dB) for WCDMA bands.

Class 3 (23dBm±2dB) for LTE-FDD bands.

Class 3 (23dBm±2dB) for LTE-TDD bands.

Class 3 (23dBm±2dB) for 5G NR bands.

Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands.

Class 2 (26dBm±2dB) for 5G NR n41/n77/n78 bands

Antennas

8*4G/5G internal antenna, 4*4 MIMO, with 50 Ω impedance

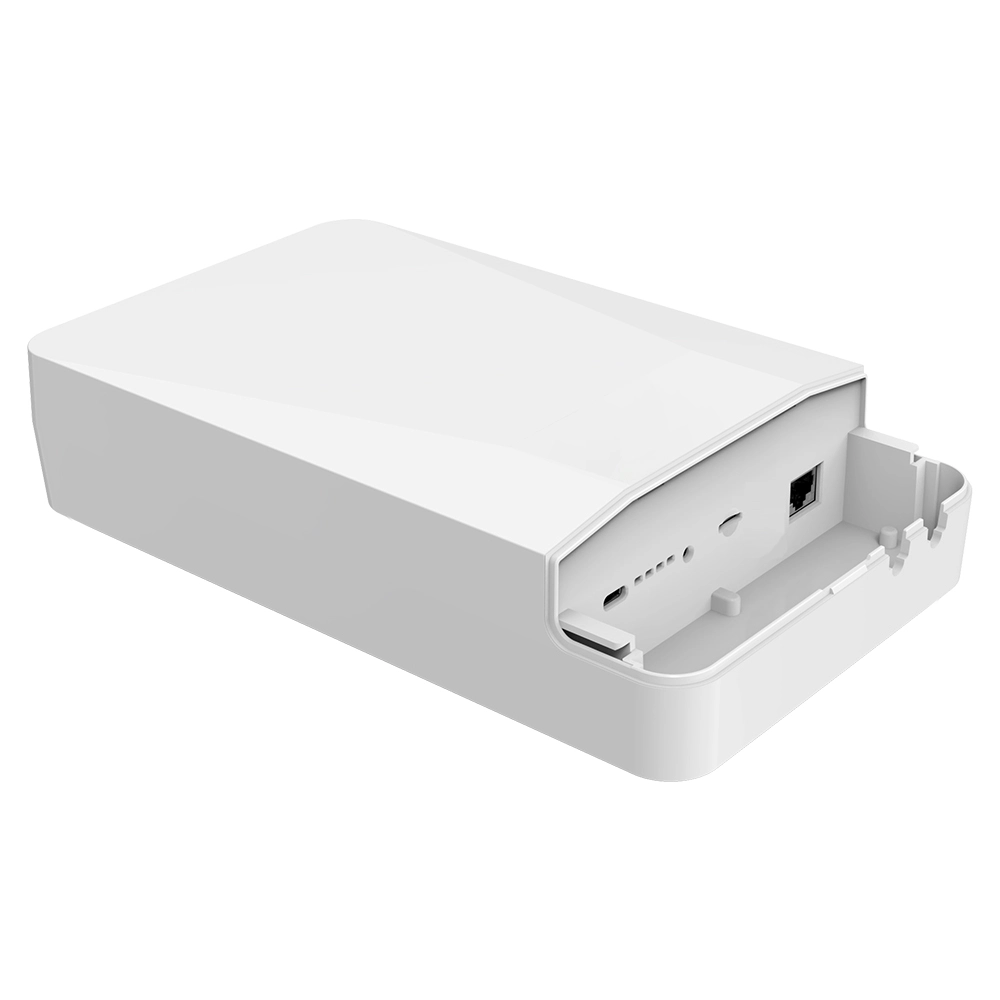

Hardware interface

1*LAN 2.5G Ethernet port, 1*USB2.0 port（Just for update and debug firmware）

SIM card

Support 1*SIM slot (4FF, Nano SIM card), 1.8V / 3V. Or 1*eSIM (Optional )

Watchdog

Built-in watchdog feature

Key button

Reset

Protection level

Ethernet port, Contact electric shock, +/-4KV, air discharge: +/-8KV

LED status indicator

PWR, SYS, Net, LAN

Power  Supply

POE power supply, DC 20V/1A~48V/0.5A

Working current

Max 500 mA, 16.8W  @24 V

Power Consumption

Idle. 60mA, 1.44W @24 V

Data link.  Max 225 mA, 5.4W  @24 V

Peak.  Max 360mA , 8.64W @24V

Protocol

PPTP,L2TP,TCP,DHCP,HTTP,TR-069,HTTPS,SSH etc.

Routing

Supports static routing, multiple routing tables

Multiple APN

Supports multiple APN access network

System Assurance

Supports system automatic detection mechanism, automatic recovery of system abnormality or crash

Data Link Assurance

Built-in link maintenance and self-recovery mechanism

Firewall

Support flexible access control of TCP, UDP, ICMP packets.

Supports port Mapping, NAT etc feature

DDNS

Supported some service providers, others can be configured manually

Firmware update

Supports local WebUI and remote OTA update firmware

Ingress Protection

IP65

Embedded system

OpenWRT 21.02

VPN Feature

Supports PPTP, L2TP etc VPN protocols

Web GUI

HTTP, Firmware Upgrade

Command Line Interface

SSHv2

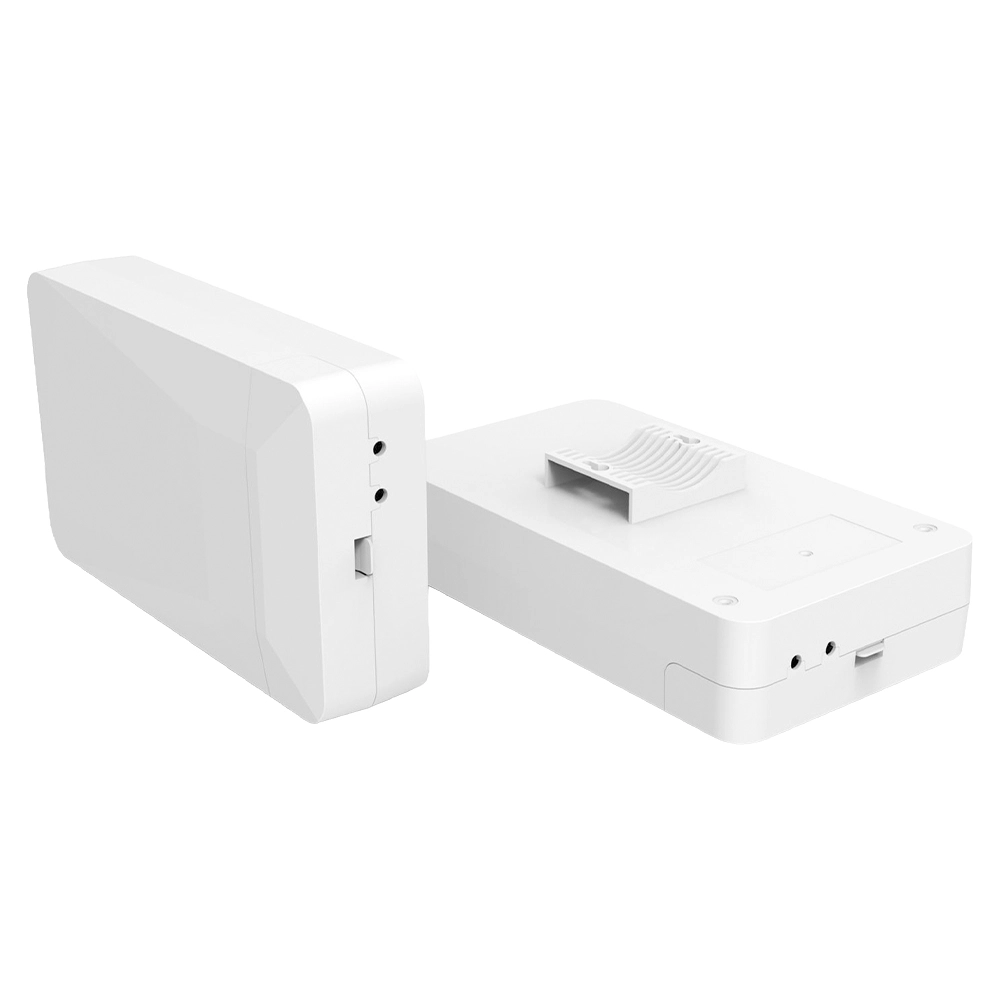

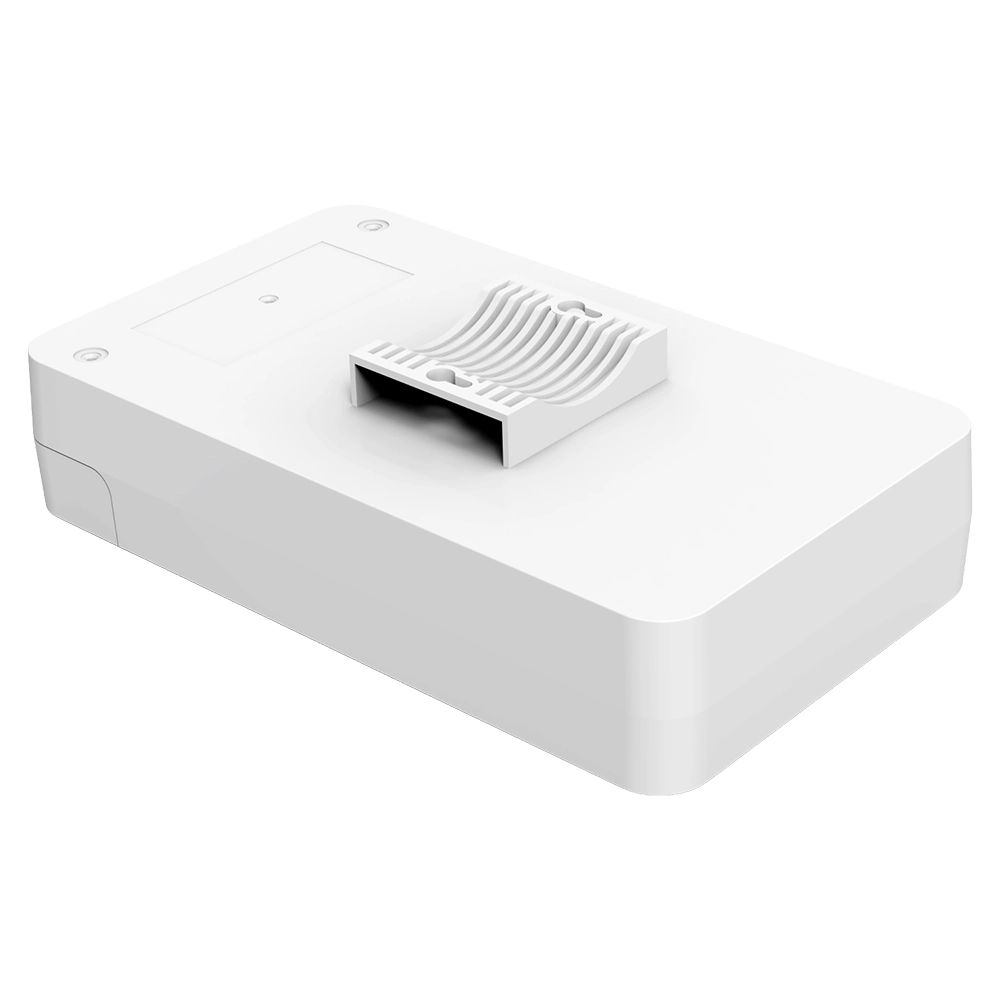

Installation

Wall or pole mounted

Management

Support TR069, TR181 remote management protocols

Operating Environment

Operating Temperature：-20℃～+50℃ Storage Temperature:-40℃～+70℃

Humidity：5％～95％（Non condensation）

Dimension

Device: 250mm*145mm*67.5mm

870g/pc
