Description
|
MESH OpenWRT 24.10 WIFI 6 AX3000 RJ11 and eSIM optional wifi sim router 5g
|
|
Item no.
|
HIR300
|
|
CPU
|
Quad-core ARM Cortex-A55 up to 2GHz
|
|
Frequency bands
|
5G NR:
5G Sub-6: n1/3/5/7/8/20/28/38/40/41/77/78
LTE FDD: B1/3/5/7/8/20/28/32
LTE TDD: B38/40/41/42/43
WCDMA: B1/5/8
MIMO:
5G NR: DL 4×4 MIMO: n1/3/7/28/38/40/41/77/78
UL 2×2 MIMO: n40/41/77/78
LTE: DL 4×4 MIMO: B1/3/7/28/32/38/40/41/42/43
Frequency can be order make
|
|
Data rates
|
5G NSA. Max 5.47Gbps (DL)/825Mbps (UL)
5G SA. Max maximum 4.67Gbps (DL)/1.25Gbps (UL)
LTE. Max 1.6Gbps (DL)/211Mbps (UL)
WCDMA. Max 42Mbps (DL)/11.5Mbps (UL)
|
|
5G NR features
|
3GPP Release 16
Supported modulations:
Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM, 200MHz 2 UL CA
Downlink: QPSK, 16QAM, 64QAM and 256QAM, 200MHz 2 DL CA
Supported SCS: 15kHz and 30kHz
Option 3x, 3a, 3 and Option 2
|
|
LTE features
|
3GPP Release 16
LTE Category: DL Cat 19/UL Cat 18
Supported modulations.
Uplink: QPSK, 16QAM and 64QAM and 256QAM, 40MHz 2 ULCA
Downlink: QPSK, 16QAM and 64QAM and 256QAM, 100MHz 5 DLCA
Supports 1.4/3/5/10/15/20MHz RF bandwidth
|
|
UMTS features
|
Compliant with 3GPP Rel-8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
Modulations:
DL: QPSK, 16QAM and 64QAM
UL: BPSK, QPSK, 16QAM
|
|
Transmitting Power
|
Class 3 (24dBm±1.5dB) for WCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
Class 3 (23dBm±2dB) for LTE-TDD bands
Class 3 (23dBm±2dB) for NR bands
Class 2 (26dBm±2dB) for NR N41/77/78
Class 1.5 (29dBm±2dB) for NR N41/77/78
|
|

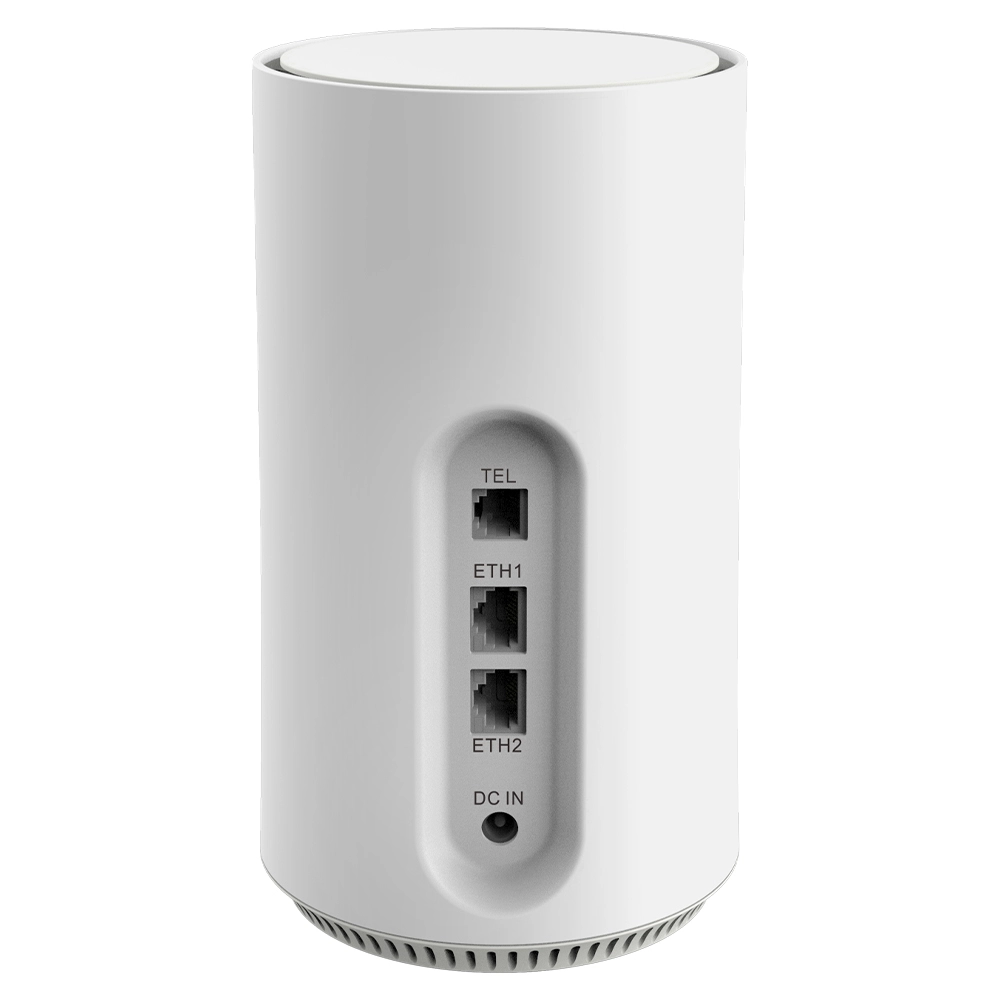

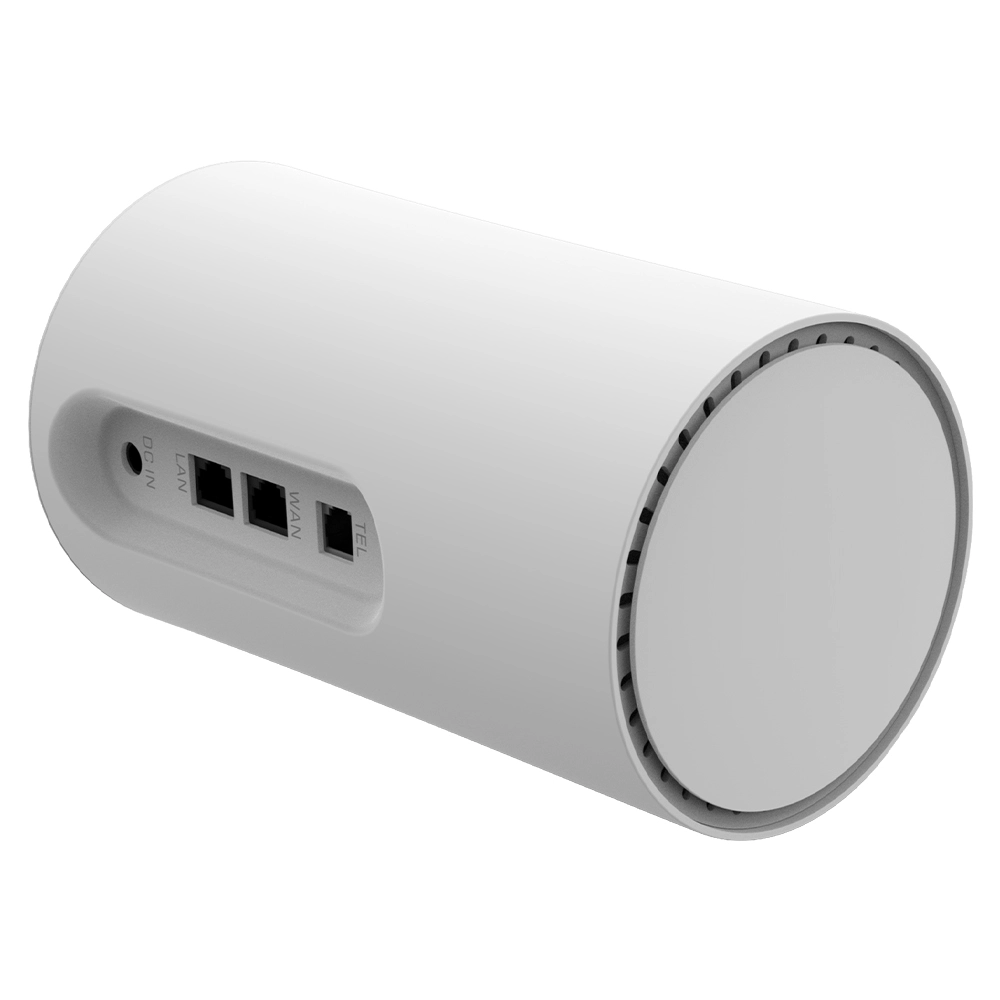

Hardware interface
|
1*2.5Gbps WAN/LAN+1*Gbps LAN ports, 1*USB2.0 port, 1*RJ11 VOLTE (Optional)
|
|
Antennas
|
4*4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance
|
|

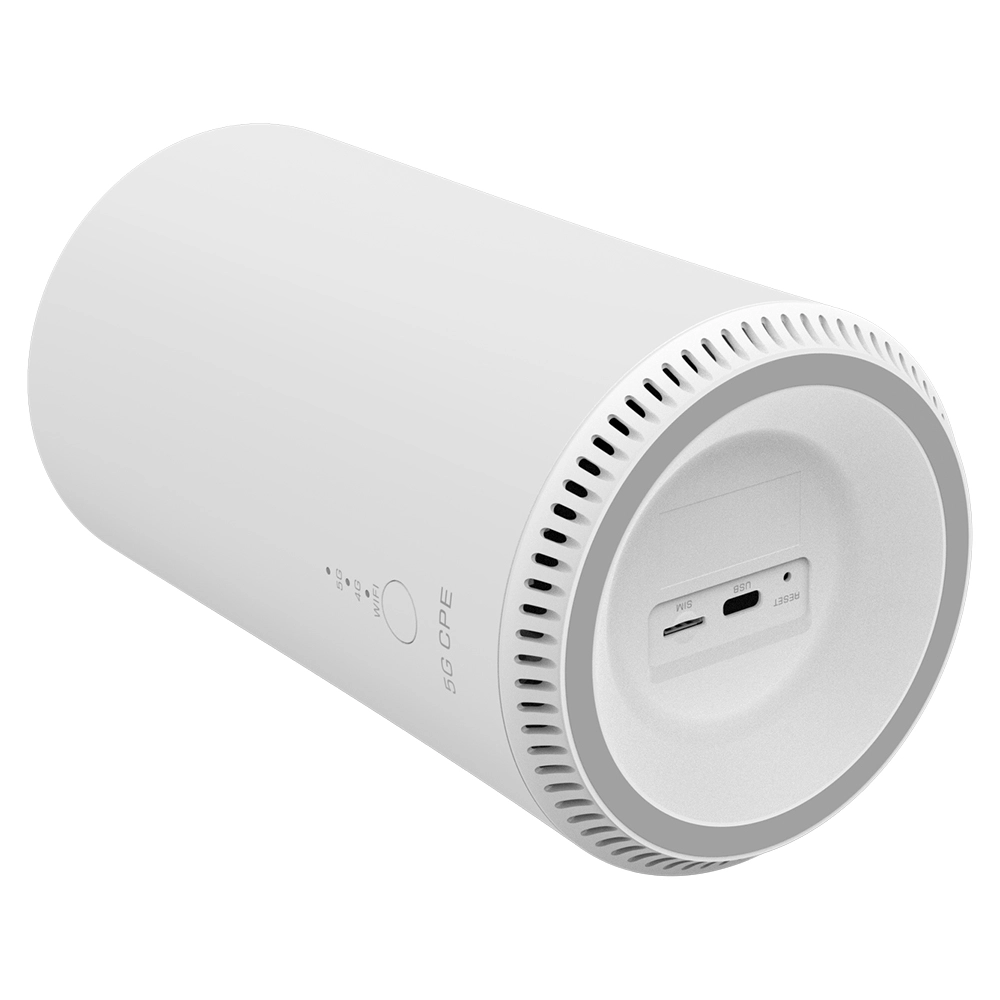

SIM card
|
Supports 1*SIM slot, 1.8V/3V Or 1*eSIM card(Optional)
|
|
Watchdog
|
Built-in watchdog feature
|
|
Key button
|
Reset, WPS or MESH
|
|
Protection level
|
Ethernet port, Contact electric shock, +/-4KV, air discharge: +/-8KV
|
|

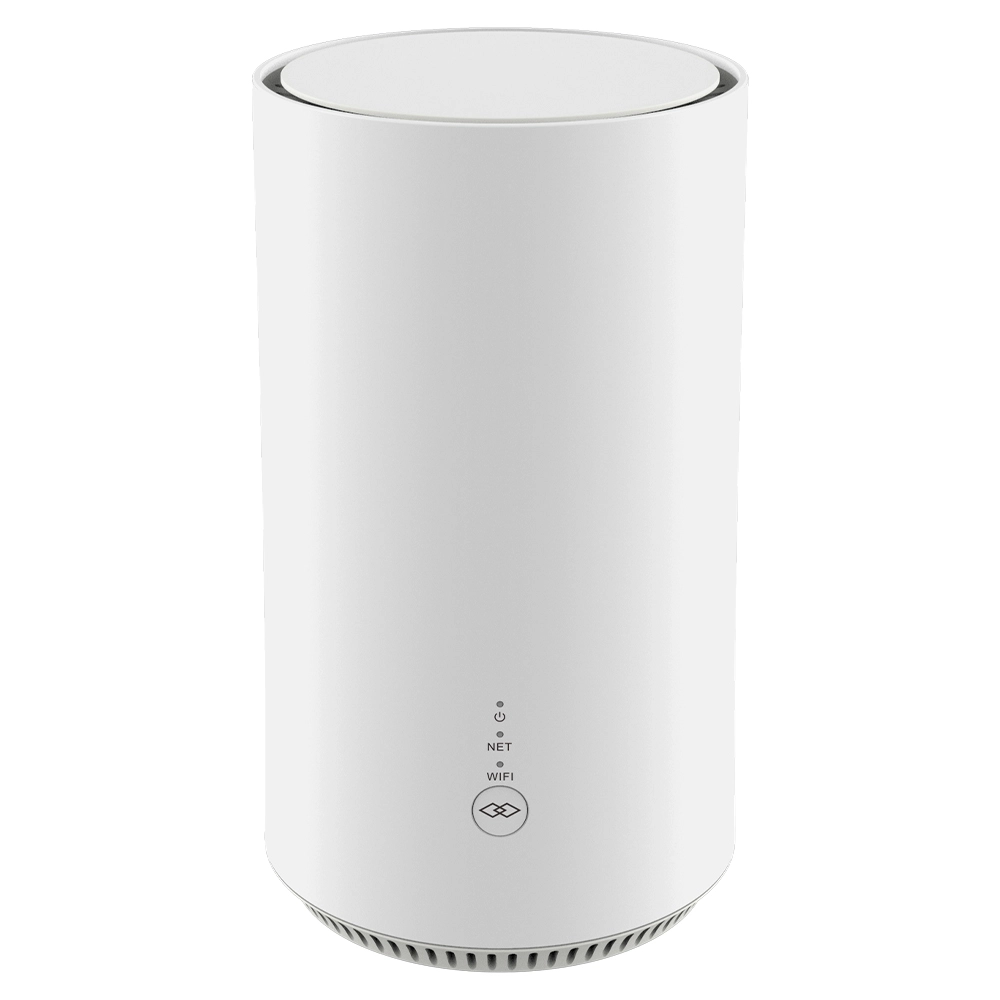

LED status indicator
|
Power, Net, WIFI
|
|
Power Supply
|
Power supply input DC 12V/2.5A
|
|
Peak current
|
Max current. 2.5A @12V
|
|
Working current
|
Max 450 mA, 5.4W @12 V
|
|
Power Consumption
|
Idle. 120mA, 1.44W @12 V
Data link. Max 450 mA, 5.4W @12 V
Peak. Max 710mA, 8.52W @12V
|
|
WLAN
|
IEEE 802.11 a/b/g/n/ac/ax, AX3000 wifi 6, Max bandwidth 2975Mbps
Supports 2.4G/5GHz WIFI 6
Supports Dynamic Frequency Selection (DFS, radar detection).
Supports 20MHz/40MHz channel bandwidth for 2.4GHz and 20MHz/40MHz/80MHz/160MHz channel bandwidth for 5GHz.
Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO).
|
|
Wireless Mode
|
Supports AP mode
|
|
Wireless Security
|
Supports WPA2-PSK (AES), WPA/WPA2-PSK (TKIP/AES) protocols for Wi-Fi Authentication
|
|
Wifi Antennas
|
2*2 MIMO internal antenna , with 50 Ω impedance
|
|
WIFI hotpot sharing
|
Supports more than 32 users to share WIFI for accessing to the Internet
|
|
Protocol
|
TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH etc.
|
|
Routing
|
Supports static routing, multiple routing tables
|
|
Multiple APN
|
Supports multiple APN access network
|
|
Data link maintenance
|
Built-in link maintenance and self-recovery mechanism
|
|
Firewall
|
Support flexible access control of TCP, UDP, ICMP packets
Supports port Mapping, NAT etc feature
|
|
Firmware update
|
Supports local WebUI and remote OTA update firmware
|
|
Embedded system
|
OpenWRT 24.10
|
|
Web GUI
|
HTTP, Firmware Upgrade
|
|
Management
|
Supports TR-069 remote management protocol
|
|
Operating Environment
|
Operating Temperature:-20℃~+50℃ Storage Temperature:-40℃~+70℃
Humidity:5%~95%(Non condensation)
|
|

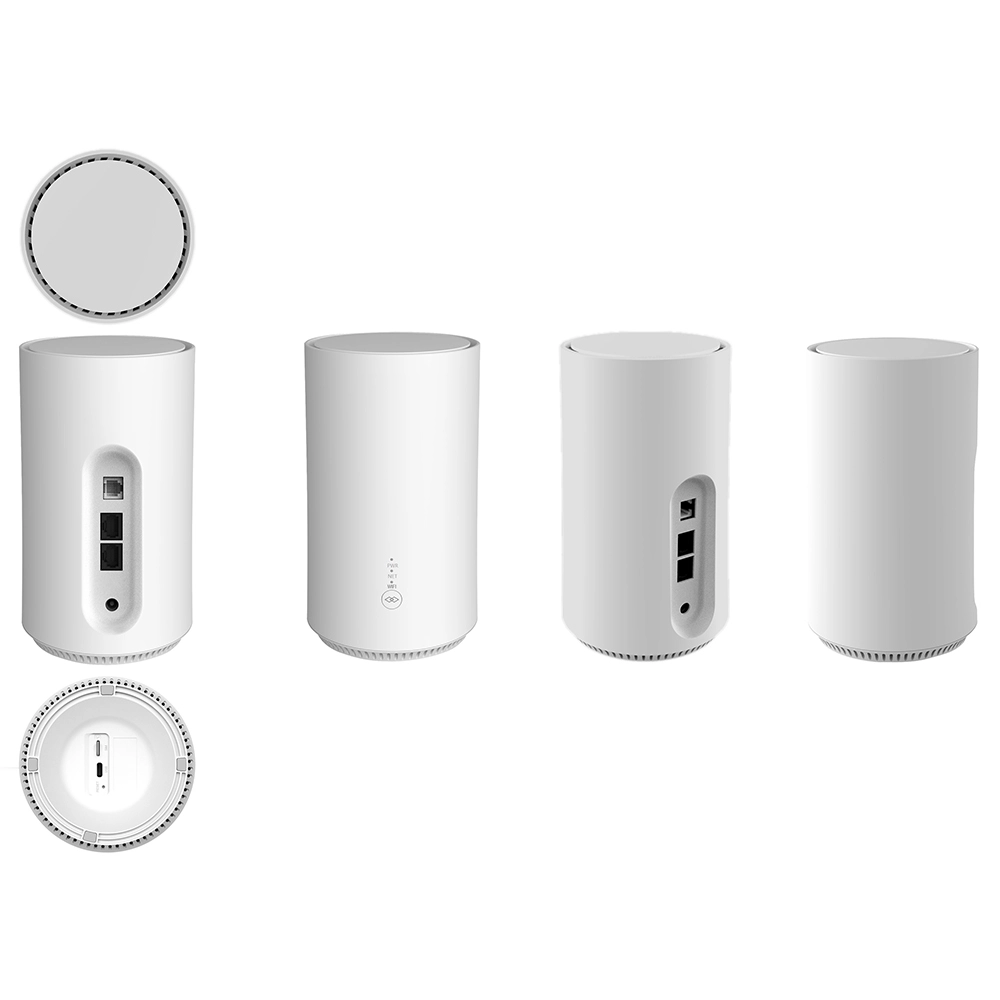

Dimension
|
Device: 110mm*112mm*195mm
670g/pc
|
