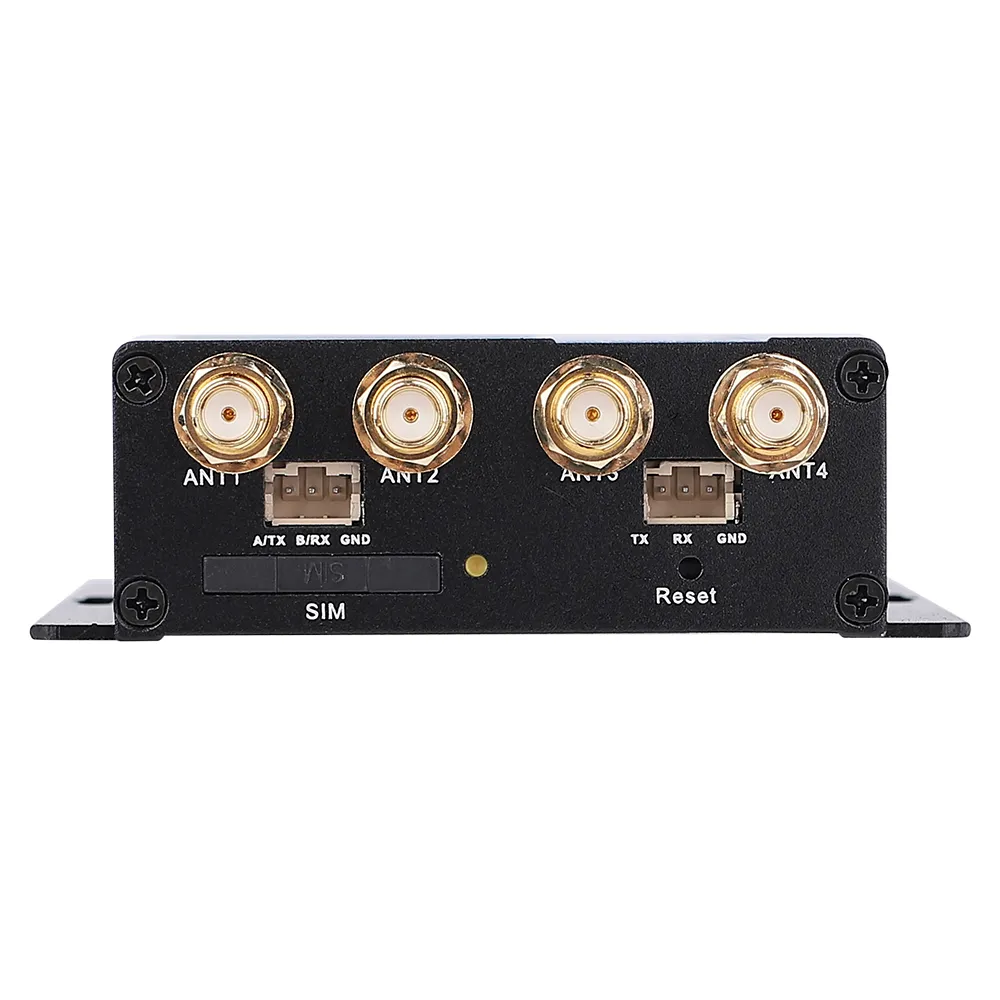

RS-232 is a classic serial communication standard that defines electrical characteristics, signal functions and mechanical specifications of an interface for binary data exchange between Data Terminal Equipment (DTE) and Data Communication Equipment (DCE). It uses unique negative logic voltage level to represent binary “0” and “1”. Once the cornerstone connect personal computers, industrial 5g router and industrial equipment, RS-232 will gradually stepped back from the center stage of consumer electronics in the wave of modern high-speed communication. However, its simple, reliable design philosophy and outstanding stability still continue to support data flow behind the scenes quietly in specialized fields such as industrial control, instrumentation and legacy equipment maintenance.

1.Origin and Definition: The Birth of a Standard

The full name of RS-232 is Recommended Standard 232, first proposed by the Electronic Industries Alliance (EIA) in 1962. It underwent its third major revision in 1969, resulted in the most widely used version, often referred to as RS-232-C. Its original purpose was very to provide a complete, standardized set of serial communication interface specifications between Data Terminal Equipment (DTE, e.g. teleprinters later computers) and Data Communication Equipment (DCE, e.g. modems). The key word here is standardization–before RS-232, connect equipment from different manufacturers often required custom, complex cables and interfaces, resulted in poor interoperability. The advent of RS-232 established a universal language and handshake protocol for chaotic world of communication.

2.Signal Essence: A Logical World Represented by Voltage

The core of RS-232 signal is a voltage-based method for representing binary data. It uses negative logic convention, which is opposite of the positive logic intuition (high voltage=1, low voltage=0) common in typical circuits. Logic “1” (also known as “Mark”) is defined as a voltage between -3V and -15V. Logic “0” (also known as “Space”) is defined as a voltage between +3V and +15V. The region between -3V and +3V is transition zone, which does not represent valid logic state and serves to improve noise immunity. This method of transmitting information using positive and negative voltage swings is the most fundamental characteristic of an RS-232 signal.

3.Electrical Characteristics: More Than Just Voltage Levels

Beyond voltage amplitude, RS-232 standard specifies signal electrical characteristics in detail, include signal rise/fall times, maximum load capacitance, driver output impedance and receiver input impedance. These specifications ensure the signal can be reliably recognized after transmission through a cable up to the recommended maximum length of 15 meters (50 feet). The signal is transmitted in a single-ended, ground-referenced manner, meaning each signal line’s voltage is referenced to Signal Ground (SG). While relatively simple and low-cost, this design is more susceptible to common-mode noise, limit its application in long-distance and high-noise environments.

4.Mechanical Interface: Classic Connector Form

When talk about RS-232 many people will immediately think that trapezoidal, two-row D-shaped connector–the D-subminiature (D-sub) connector, the most common types are 25-pin (DB-25) and 9-pin (DB-9). Early equipment often use DB-25, which defined a rich set of control signal lines. As technology simplified, serial ports on personal computers standardized on 9-pin which is DB-9 connector and retained the core data and control lines. Clear mechanical specifications and pin assignments ensure that cables and ports from different manufacturers are physically compatible.

5.Functional Classification: Data Lines, Control Lines and Ground

Signal lines of RS-232 interface can be divided into three main functional categories:

1. Data Signal Lines: Primarily Transmit Data(TXD) and Receive Data (RXD), responsible for carrying binary information stream to be exchanged.
2. Control Signal Lines: A set of handshaking signals used to coordinate “conversation” flow. These include Request to Send (RTS), Clear to Send (CTS), Data Terminal Ready (DTR), Data Set Ready (DSR) and Data Carrier Detect (DCD). They inform other party of their own status or request actions, enable simple flow control and status synchronization.

Signal Ground: Provides common reference potential for all voltage signals.

6.Data Format: Start-Stop Framed Serial Stream

RS-232 employs an asynchronous serial communication protocol. “Asynchronous” means the two communicating parties do not share a clock signal; instead, they rely on pre-agreed parameters to achieve self-synchronization within each data frame. The typical data frame structure is as follows:

Start Bit: One logic “0” bit, mark the beginning of a data frame.

Data Bits: 5 to 8 bits, represent actual user data (often 7-bit ASCII or 8-bit binary data).

Parity Bit: (Optional) Used for simple error detection (e.g. even parity or odd parity).

Stop Bit(s): 1, 1.5, or 2 logic “1” bits, mark the end of a data frame.

Both communicating parties must configure parameters such as baud rate (symbols per second), number of data bits, stop bits and parity identically; otherwise garbled data will result.

7.Communication Mode: Point-to-Point Direct Dialogue

Standard RS-232 communication is built on a one-to-one, point-to-point mode and clearly distinguishes between DTE and DCE roles. To achieve full-duplex communication (simultaneous transmission and reception), cable connections must be crossed: the TXD of the DTE must connect to the RXD of the DCE. This is why connect two computers (both DTE devices) directly requires a “Null Modem” cable, this clear role division and connection method simplifies system design.

8.Workflow: Coordinated Dance of Handshaking Signals

A complete RS-232 communication session vividly demonstrates the role of control signals, use a modem dial-up scenario as an example:

1.DTE asserts DTR (Data Terminal Ready), announce it is ready.

2.DCE (modem) detects a ring signal on the phone line and asserts RI (Ring Indicator).

3.DTE asserts RTS (Request to Send), request permission to transmit data.

4.DCE, when ready, responds by asserting CTS (Clear to Send).

5.Once connection with remote end is established, DCE asserts DCD (Data Carrier Detect), indicate the communication link is active.

6.Data transmission begins on TXD and RXD lines.

This series of “handshakes” ensures communication proceeds in orderly fashion only when both parties are ready.

9.Level Conversion: Bridge to Logic Circuits

Modern computers and industrial 5g router internally use TTL (Transistor-Transistor Logic) or CMOS (Complementary Metal-Oxide-Semiconductor) logic levels (e.g. 0V to 3.3V or 0V to 5V). These are completely incompatible with RS-232’s ±15V levels, so a specialized “level converter chip” is essential to act as a bridge. Classic MAX232 series chip, for example, integrates an internal charge pump circuit that generates required positive and negative RS-232 voltages from 5V power supply, perform bidirectional conversion between TTL/CMOS and RS-232 levels, RS-232 interface cannot connect to modern digital systems without this small chip.

10.Advantages: Synonym for Simplicity and Reliability
The enduring popularity of RS-232 for decades stems from several core strengths:
1.Simplicity: Easy hardware implementation (can work with just three wires: TXD, RXD and GND), mature and straightforward software programming.
2.Reliability: Relatively high voltage swing (~30V) provides good noise immunity, make it more tolerant of interference in industrial environments compared to Low-Voltage Differential Signaling (LVDS).
3.Maturity and Universality: The standard is open, related chips, cables and debugging tools are extremely common, lead to low development and maintenance costs.

11.Limitations: Unavoidable Technical Shortcomings

RS-232 also has significant limitations:

1.Speed Bottleneck: Over longer cables, reliable baud rate is typically limited to below 115200 bps.

2.Short Transmission Distance: Recommended maximum cable length is 15 meters (50 feet); extend it will increases bit error rate.

3.Point-to-Point Only: One port typically connects to only one device, not support multi-drop networking.

4.Large Connector Size: Not suitable for increasingly compact electronic devices.

12.Evolution and Alternatives: Surpass the Legacy

To overcome RS-232’s shortcomings, several improved or alternative standards emerged:

RS-422: Use balanced differential transmission, significantly improve noise immunity and greatly extend distance and speed capabilities.

RS-485: Built on RS-422 by supporting multi-point bus topologies, allow multiple devices on a single bus, become a foundation for industrial fieldbuses.

USB (Universal Serial Bus): In consumer electronics realm, USB’s high speed, hot-pluggability and bus powering capability have replaced traditional serial ports almost completely.

Ethernet: Provides networked, long-distance and high-speed communication capabilities.

13.Modern Survival: An Irreplaceable Niche Market

Even no longer prominent, RS-232 has found stable niches where it remains indispensable:

Industrial Automation: Vast numbers of legacy devices (PLCs (Programmable Logic Controllers), CNC machines, sensors, 4g industrial router and meters etc.) still use RS-232 ports for parameter configuration, data reading or low-level debugging.

Scientific Instruments: Many precision instruments like spectrometers, oscilloscopes and signal generators include it as standard interface.

Embedded Systems: RS-232 is often used as a console port for system boot debugging and low-level interaction.

In these scenarios, stability and compatibility are far more critical than ultra-high speed.

14.Debugging and Tools: Engineer’s Trusty Assistant

RS-232 is a powerful tool for hardware and embedded software engineers during debugging. Use a simple “USB to RS-232” adapter and a serial terminal or debugger software, engineers can intuitively send commands, receive data and monitor communication packets to diagnose device status, update firmware or perform interactive tests. This transparent, direct communication method is invaluable during early system development and troubleshooting.

15.Common Misconceptions Clarified

Several common misconceptions about RS-232 need clarification:

1.RS-232 standard itself does not specify data format (e.g. data bits or stop bits), it only defines electrical and interface characteristics. Data format belongs to asynchronous serial communication protocol, they are often associated but conceptually distinct.

2.Not all interface using 9-pin D-sub connector is RS-232, check the pin assignment (it could be VGA for instance).

3.RS-232’s “full-duplex” capability relies on separate TXD and RXD lines, but half-duplex operation can be achieved via software protocols even in a three-wire minimal connection.

16.Future Outlook: The Legacy of a Classic Technology

Looking ahead, adoption rate of RS-232 as a standalone physical interface for new designs will undoubtedly continue to decline, but its technological legacy will persist. Asynchronous serial communication principles, start-stop framing structure and software flow control concepts it established have profoundly influenced subsequent communication protocols. In scenarios demand extreme simplicity, reliability, low cost and tolerance to low speeds, its derivatives or conceptual successors will continue to play a role. Understanding RS-232 is not just learning a piece of technological history, it’s mastering a fundamental and practical communication paradigm.

Summary

In conclusion, RS-232 is far more than an obsolete technical term. It represents a complete communication system specification, from its unique negative-logic voltage definition and D-sub connector form to its comprehensive handshaking signals and operational workflow, all reflecting ingenuity of early digital communication engineers. While its performance metrics may be unremarkable by today’s standards, its unparalleled simplicity, reliability and maturity ensure it still plays a solid, foundational role in professional fields like industrial control, instrumentation and system debugging. Understanding RS-232 is to touch a cornerstone in the history of digital communication, its design philosophy and spiritual legacy will continue to inspire future technological exploration.
