Global version Wifi 6 AX3000 sim wifi router 5g

Description

Global version Wifi 6 AX3000 sim wifi router 5g

Item no.

HYM01K35

CPU

MT7981+MT700

WiFi Frequency

2.4G&5G

WiFi Standard

2.4G: 802.11b/g/n /ax 2T2R MIMO

5.8GHz: 802.11a/n/ac/ax 2T2R MIMO

WiFi

2.4GHz: 600Mbps, 5GHz: 2400Mbps

5G NR

3GPP Release 16 NSA/SA operation, Sub-6 GHz

5G Network Mode

NSA/SA

5G/4G Data Rate

5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)

5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs)

LTE : Down 1.0 Gbps；UP 200 Mbps

5G Frequency

5G NR NSA

N1/2/3/5/7/8/20/25/28a/28b/30/38/40/41/48/66/71/77/78/79

5G NR SA

N1/2/3/5/7/8/20/25/28a/28b/30/38/40/41/48/66/71/77/78/79

MIMO

Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

4G&3G Frequency Bands

Downlink Cat 19/ Uplink Cat 18

LTE-FDD

B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28a/28b/29/30/32/ 66/71

LTE-TDD

B34/38/39/40/41/42/43/48

Modulation Mode

5G:

GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM

WIFI:

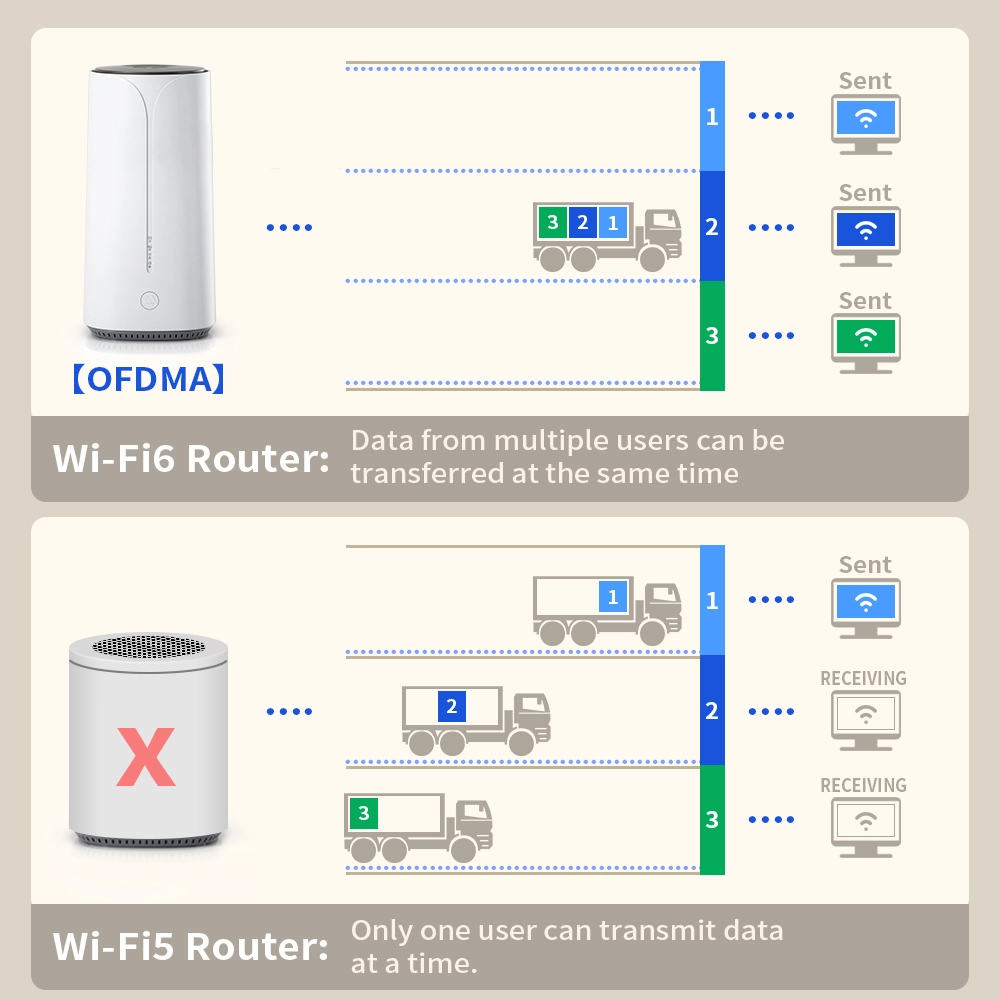

1024-QAM / OFDMA

Interface

2*10/100M/1000 LAN

1*10/100M/1000/2500WAN

1*12V 2A DC Power Input

1 Reset Button

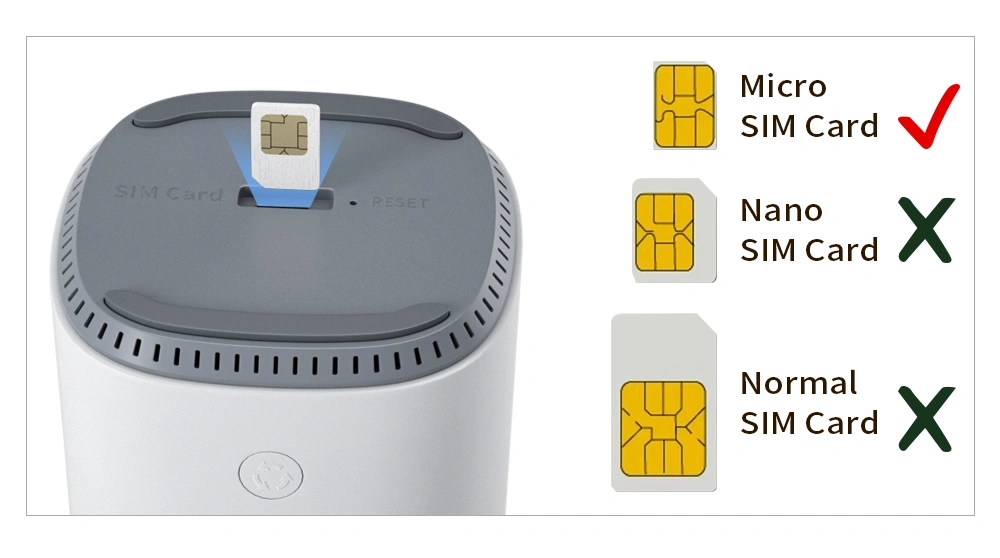

2 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal)

1 Breathing Light Button

1 MESH Networking Button

Network Extension

MESH

Reset

Reset（Long press 10 seconds to restore the factory settings）

MESH

Networking: short press (blue networking light flashes)

LED Indicator

Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal

Power Consumption

＜24W

Operating Environment

Operating Temperature：-20℃～+50℃  Storage Temperature:-40℃～+70℃

Humidity：5％～95％（Non condensation）

Dimension

Device: 130*140*300MM

15pcs/ctn size: 660*440*320mm

G.W.: 20Kg/ctn

Package

1m Cat 6 Ethernet cable*1pc, Power Adapter*1pc, Quick Start Guide*1pc,5G CPE Router*1pc
