Description

Cat 4 POE 24V/1A waterproof outdoor lte router with wifi extender

Item no.

HY8172+HY8760

CPU

ASR 1802S+MT7628N

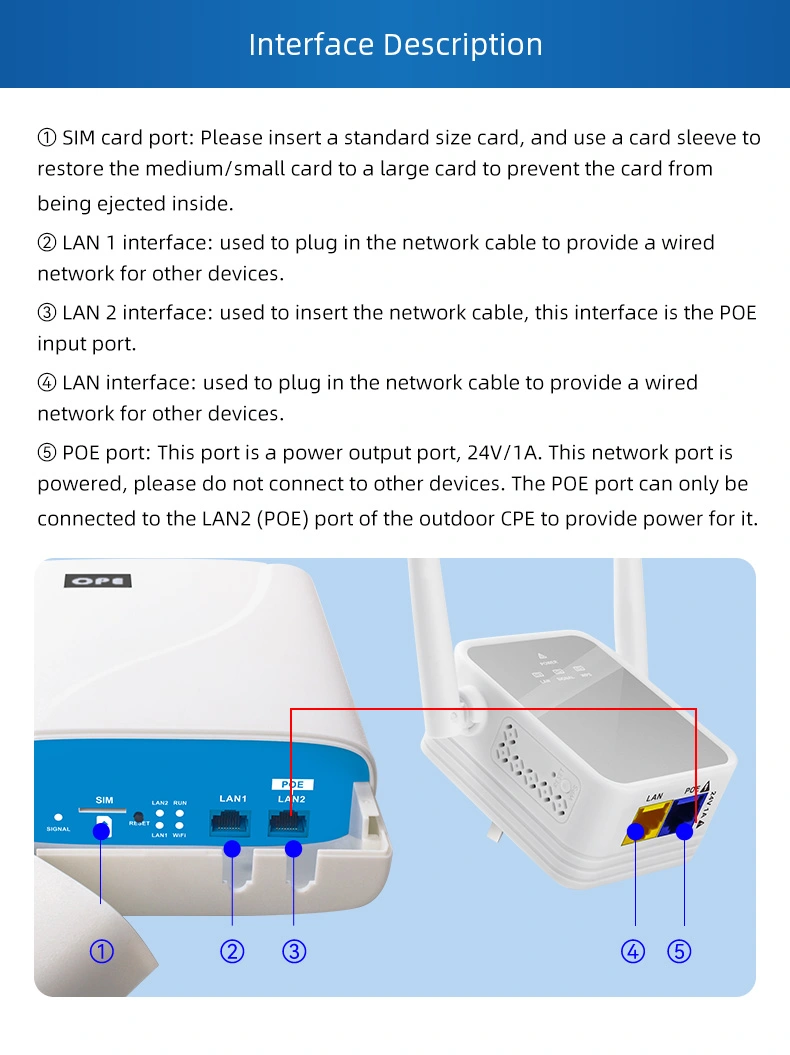

Interface

1 WAN(POE 24V/1A)+1 LAN

Button

Reset

Power Suppply

DC 12V/1A

DDR/SPI

64MBytes/16MBytes

SIM Card

2 FF

Software

APN Setting、Device Settings、Routing Settings、Firewall Settings

System

Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux

Browser

IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later)

LED

PWR，WiFi，Internet，Interface，Signal Strength LED

ML352-AU

FDD B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66; TDD B38/B40/B41; WCDMA B1/B2/B4/B5/B8

HY8760

Chipset

MT7628KN

SPI FLASH

1MB

RAM

8MB

Protocol

IEEE 802.11n; IEEE 802.11g; IEEE 802.11b

Transmit power

802.11b   18dBm±2dBm;

802.11g   17dBm±2dBm;

802.11n   16dBm±2dBm;

Receiving sensitivity

802.11b: -90dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Channel

1-13

Wireless speed

300Mbps

Frequency band

2.4GHz

Antenna

2dbi x 2

Port

1 WAN/1 LAN

LED

SYS/LAN/WIFI/WPS

Button

Reset,WPS

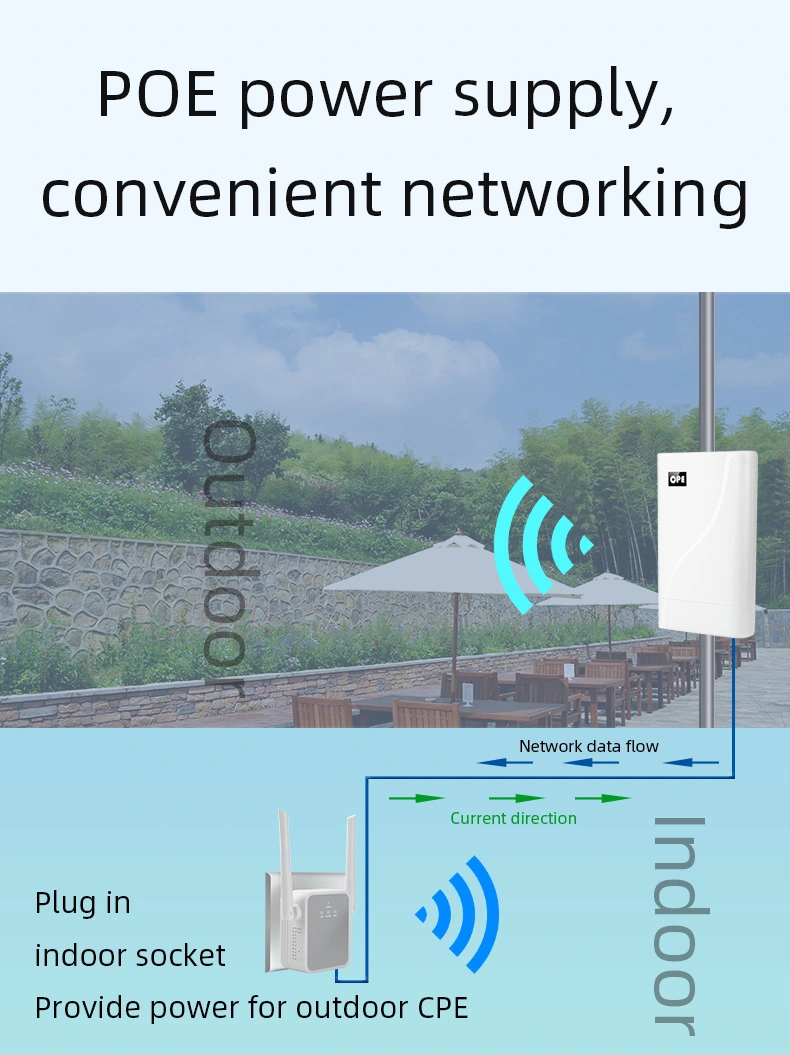

POE output

24V/1A

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 26*25*8cm; 0.90Kg/pc;

24pc/ctn; CTN size: 52*47*51cm; G.W.: 21Kg/ctn;
