Description

300mbps 4g wifi router with sim card slot and external antenna

Item no.

HY8624

Chipset

QCA9531+CLM920-JD3-AU

CPU Frequency

650MHz

Memory

64MB

Flash

8MB

WIFI

2*2 mimo  2.4GHz  802.11bgn   300M

LTE

DL 150Mbps; UL 50Mbps

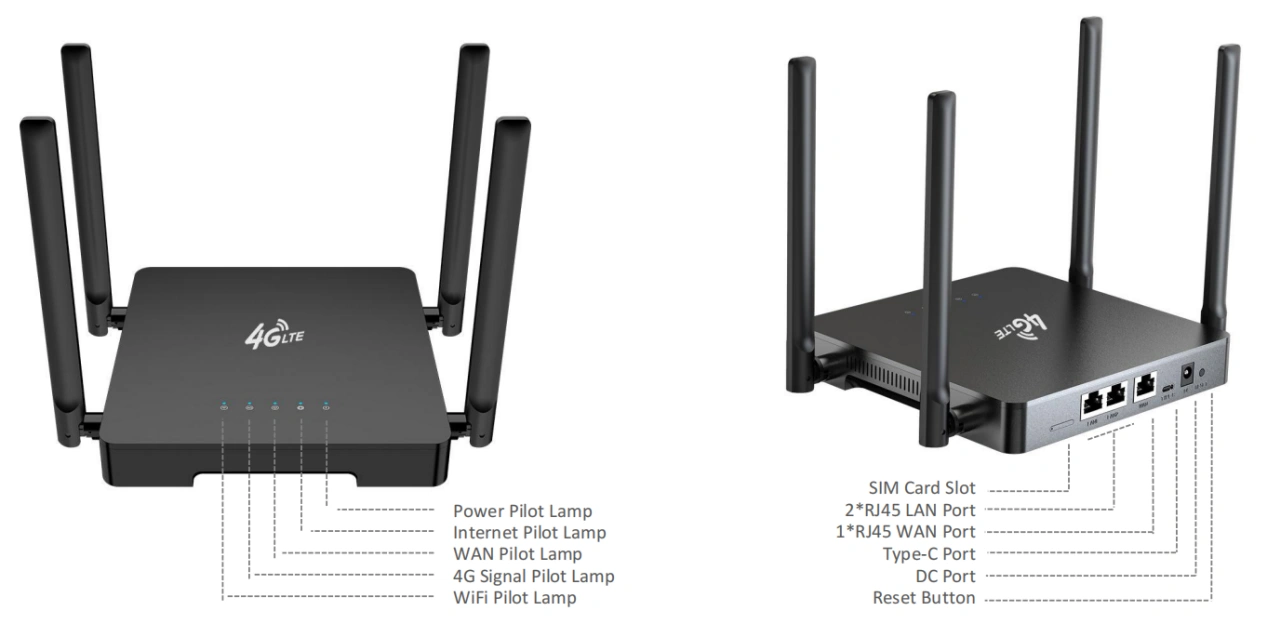

Device Interfaces

1 x Nano SIM Card Slot

2 x RJ45 10M/100M LAN Ethernet Port

1 x RJ45 10M/100M WAN Ethernet Port

1 x Reset Button

1 x DC Port

1 x Micro USB Port

WIFI Antenna

2 x 5dBi External Antenna

LTE Antenna

2 x 5dBi External Antenna

Power Supply

DC 12V/1A, Micro USB 5V/2A

4G Frequency

FDD: B1/B3/B5/B7/B8/B20/B28

TDD: B38/B40/B41

WCDMA: B1/B5/B8

Frequency can be customized

Wifi Standard

IEEE802.11b/g/n

11N: 2.4~2.4835GHz

Modulation Schemes

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Transfer Rate

HT20: up to 144 Mbps

HT40: up to 300 Mbps

WAN Type

4G/3G/2G or Wired

4G/3G Features

Auto-APN

Auto dial-up

Roaming

SMS(Send/Receive/Delete)

USSD

PIN Management

Wi-Fi

SSID, Broadcast and Hide Wi-Fi Name

WEP, WPA-PSK, WPA2-PSK, WPA/WPA2,WPA3

WiFi Frequency, Channel, Bandwidth

MAC IP Address Blacklist and Whitelist

Firewall

NAT(DMZ, UPNP)

telnet, ping, http

Defense Dos Attacks

User Define to Prevent Attacks

Management

User Access Restrictions

URL Filter

QOS speed limit

System Log

System Settings

Traffic Statistics of Wireless and Ethernet Networks

Ping or Traceroute to Check the Network Working Status

Iperf Speed Test

IPV4/IPV6

Upgrade Firmware from Local

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 310*230*41mm

CTN size: 48.8*43.8*33.5 CM, 20pc/ctn

G.W.: 11.72 KGS
