Description

300mbps Cat 4 openWRT 4g wifi router with sim card slot

Item no.

HY8350

CPU

ASR 1803S+MT7628N

Interface

1 WAN+4 LAN

Button

Reset/wps/wifi/battery level

Power Suppply

DC 12V/1A

DDR/SPI

64MBytes/16MBytes

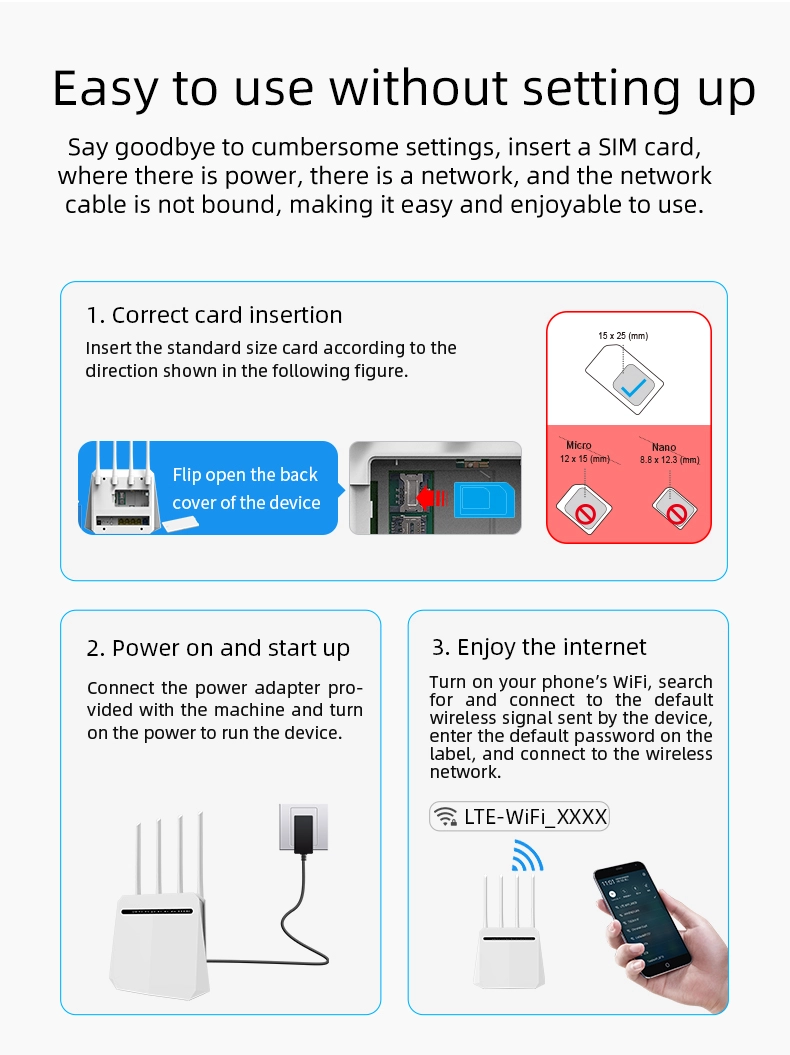

SIM Card

2 FF or 4 FF or dual sim

Battery

7.4V 2*2000mAH

MIMO for WiFi

5dbi X 2

Max. transmitter power for WiFi

802.11b   24dBm±2dBm;

802.11g   16dBm±2dBm;

802.11n   15dBm±2dBm;

WiFi security

WPA/WPA2

Software

APN Setting、Device Settings、Routing Settings、Firewall Settings

System

Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux

Browser

IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later)

ML352-JD3-AE

FDD:B1/B3/B5/B7/B8/B20;

TDD:B38/B40/B41;

WCDMA B1/B5/B8

Protocol

IEEE 802.11n; IEEE 802.11g; IEEE 802.11b

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

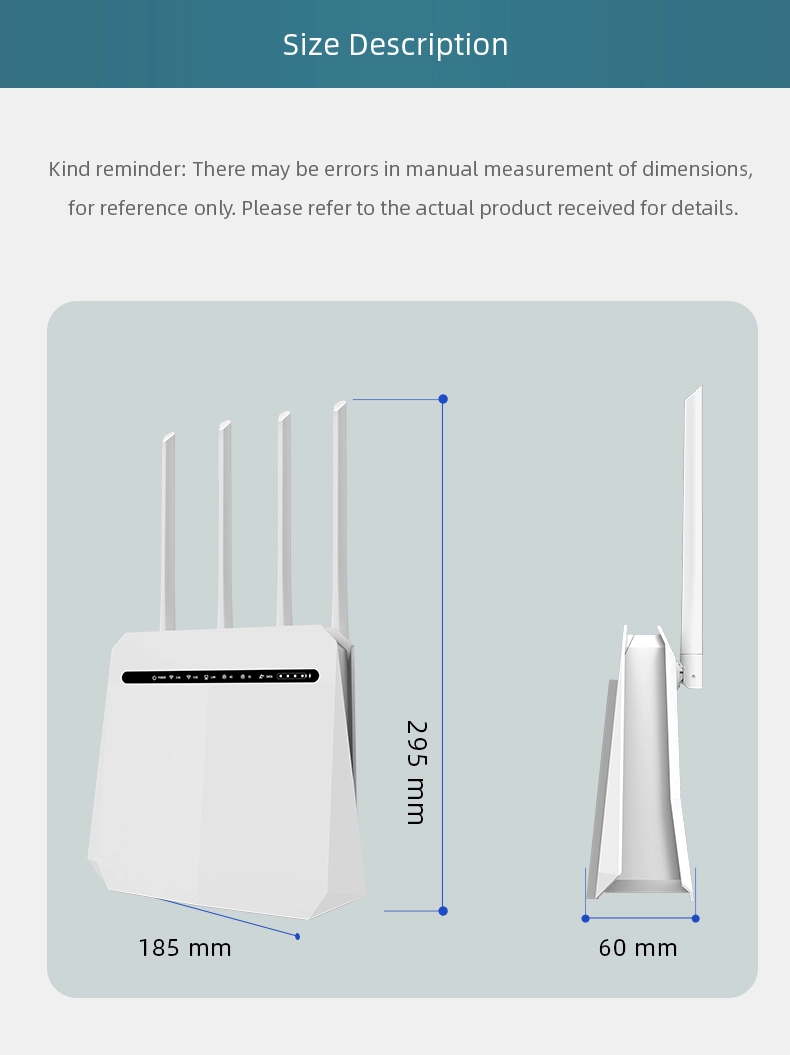

Dimension

Device: 23*19*8cm; 0.80Kg/pc;

20pc/ctn; CTN size: 48*43*40cm; G.W.: 17Kg/ctn;
