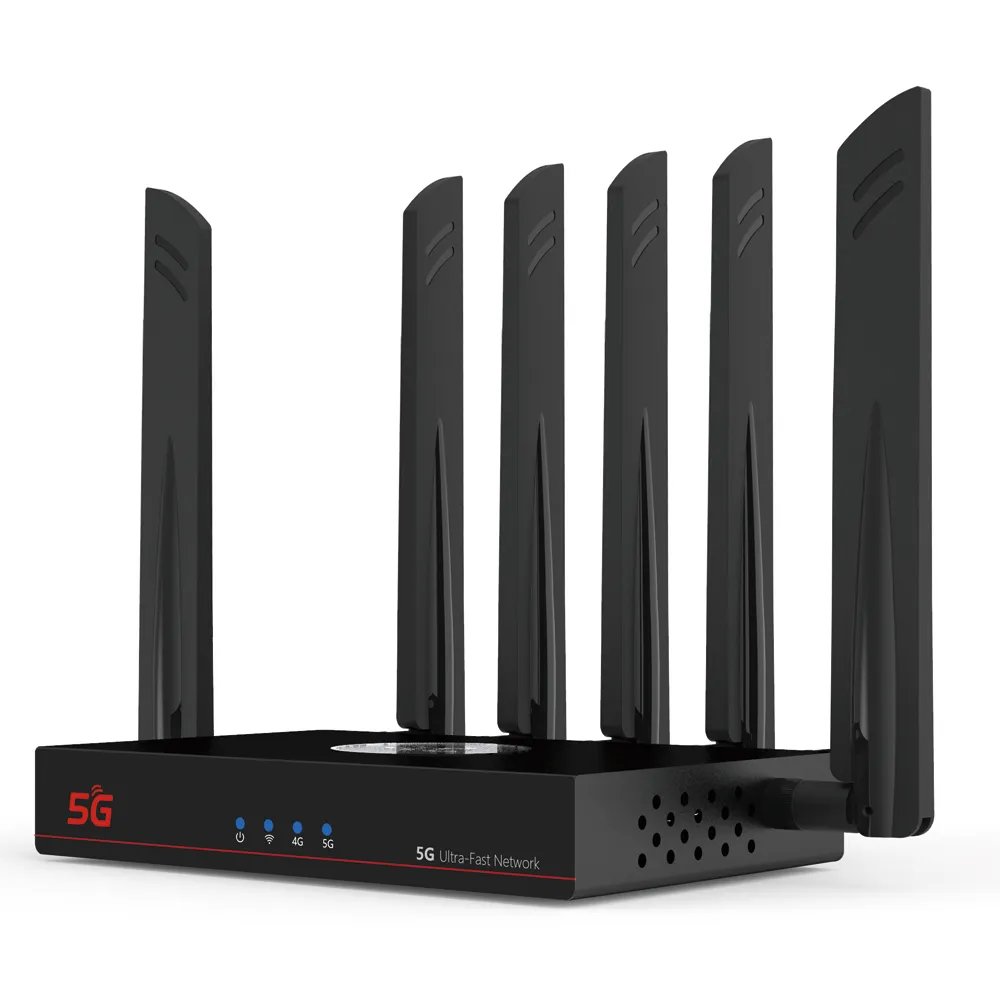

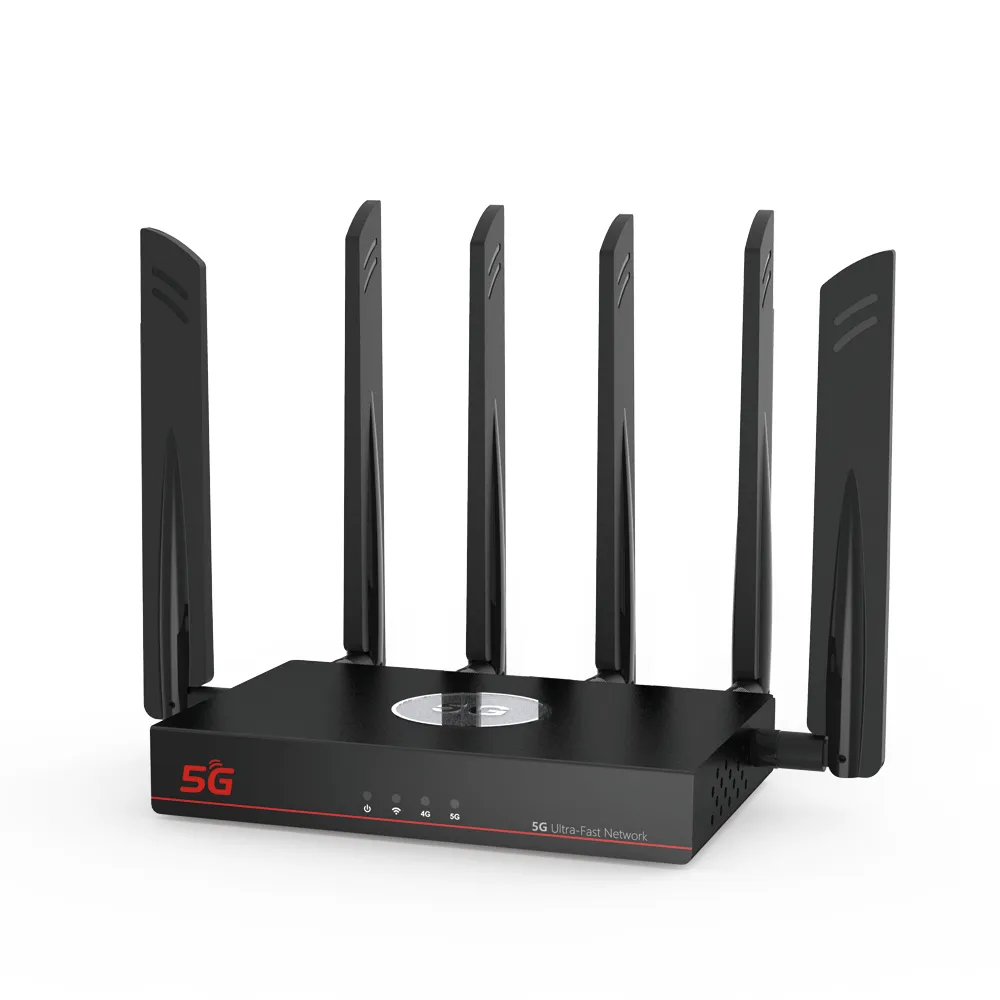

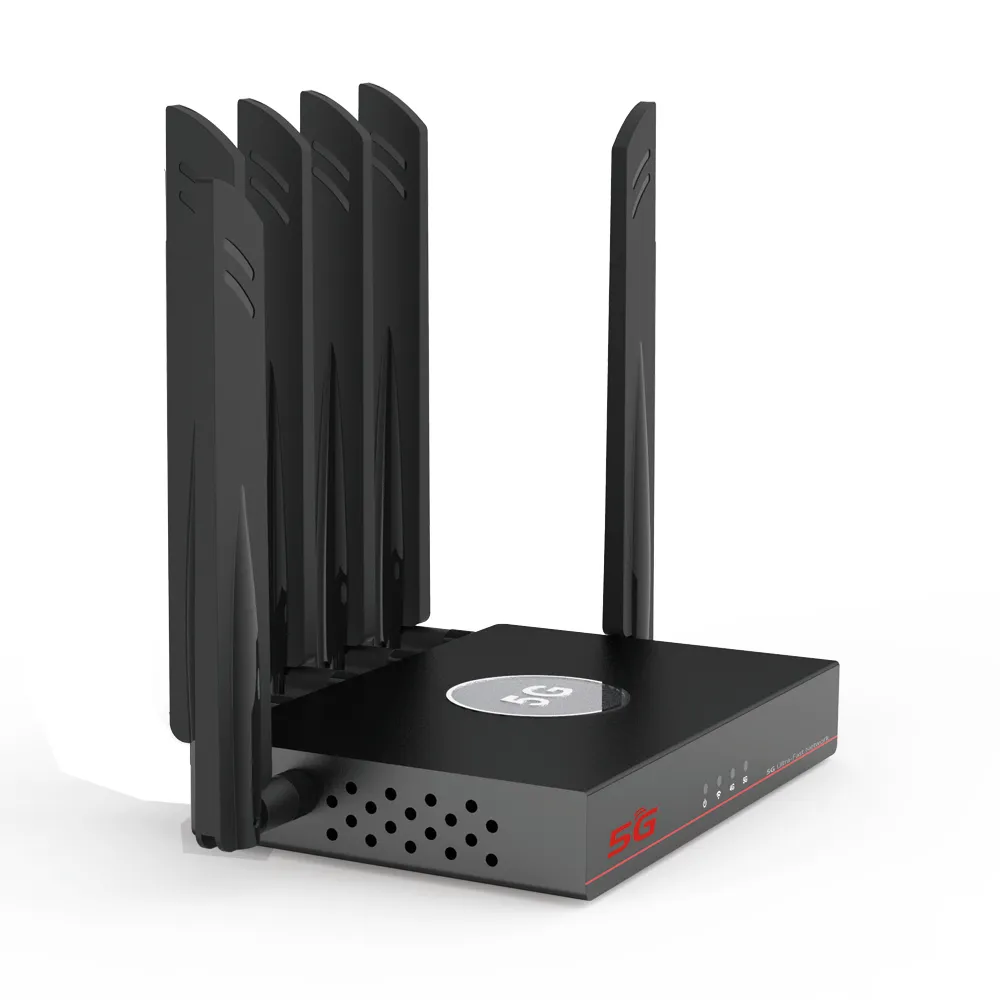

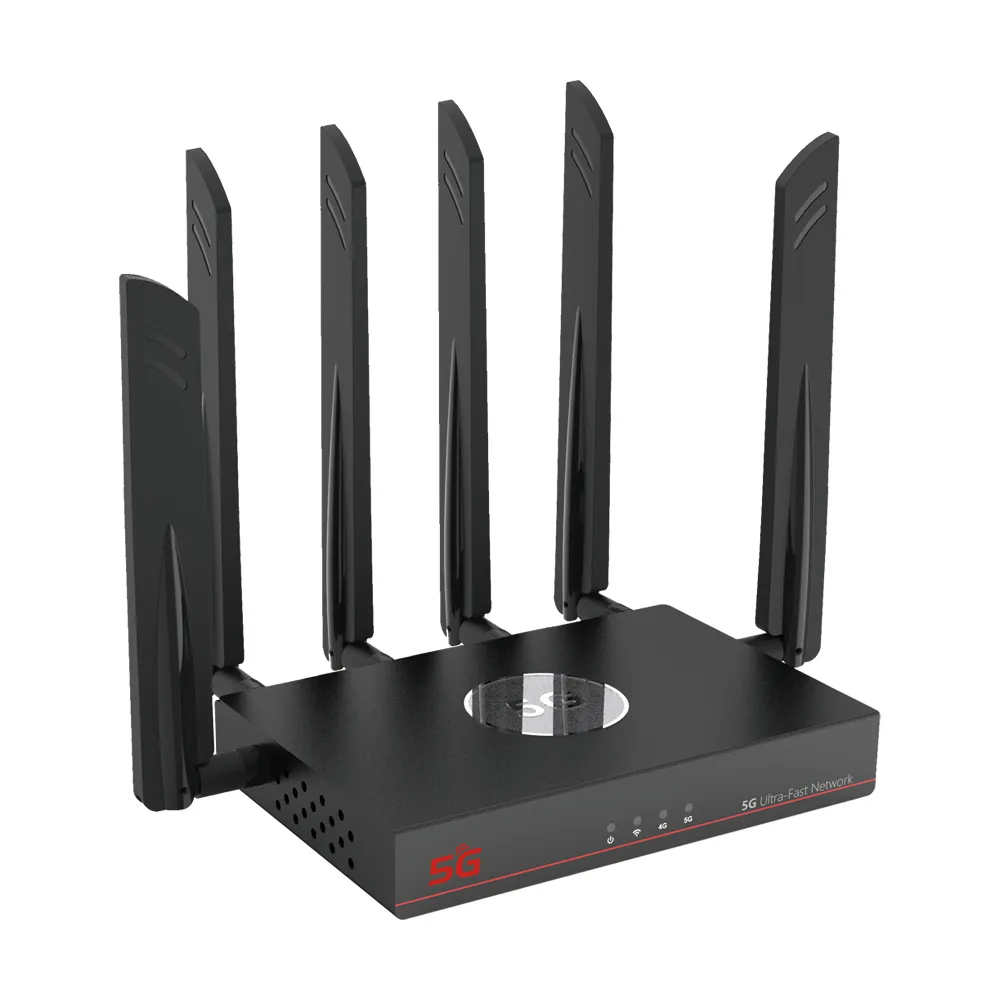

SDX62 AX3000 SA NSA Dual Sim Card 5g cellular router

Description

SDX62 AX3000 SA NSA Dual Sim Card 5g cellular router

Item no.

HYM12K43

CPU

MT7981+SDX62 (SDX75Optional）

Flash

8MB+1GB

RAM

2 GB

Sim slot

Nano-SIM

WiFi Frequency

2.4G&5G

WiFi Standard

2.4G: 802.11b/g/n/ax 2T2R MIMO

5.8GHz: 802.11a/n/ac/ax 2T2R MIMO

WiFi

2.4GHz: 600Mbps; 5GHz: 2400Mbps

5G Standard

3GPP Release 16 NSA/SA operation, Sub-6 GHz

5G/4G Data Rate

5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)

5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs)

LTE : Down 1.0 Gbps; UP 200 Mbps

5G Frequency

5G NR NSA

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79

5G NR SA

n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79

MIMO

Downlink: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

4G&3G Frequency Bands

Downlink Cat 19/ Uplink Cat 18

LTE-FDD

B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71

LTE-TDD

B34/38/39/40/41/42/43/48

MIMO

DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/

B29/B30/B66/B41/B42/B43/B48/B71

WCDMA

B1/2/4/5/8/19

Modulation Mode

5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM

WIFI: 1024-QAM / OFDMA

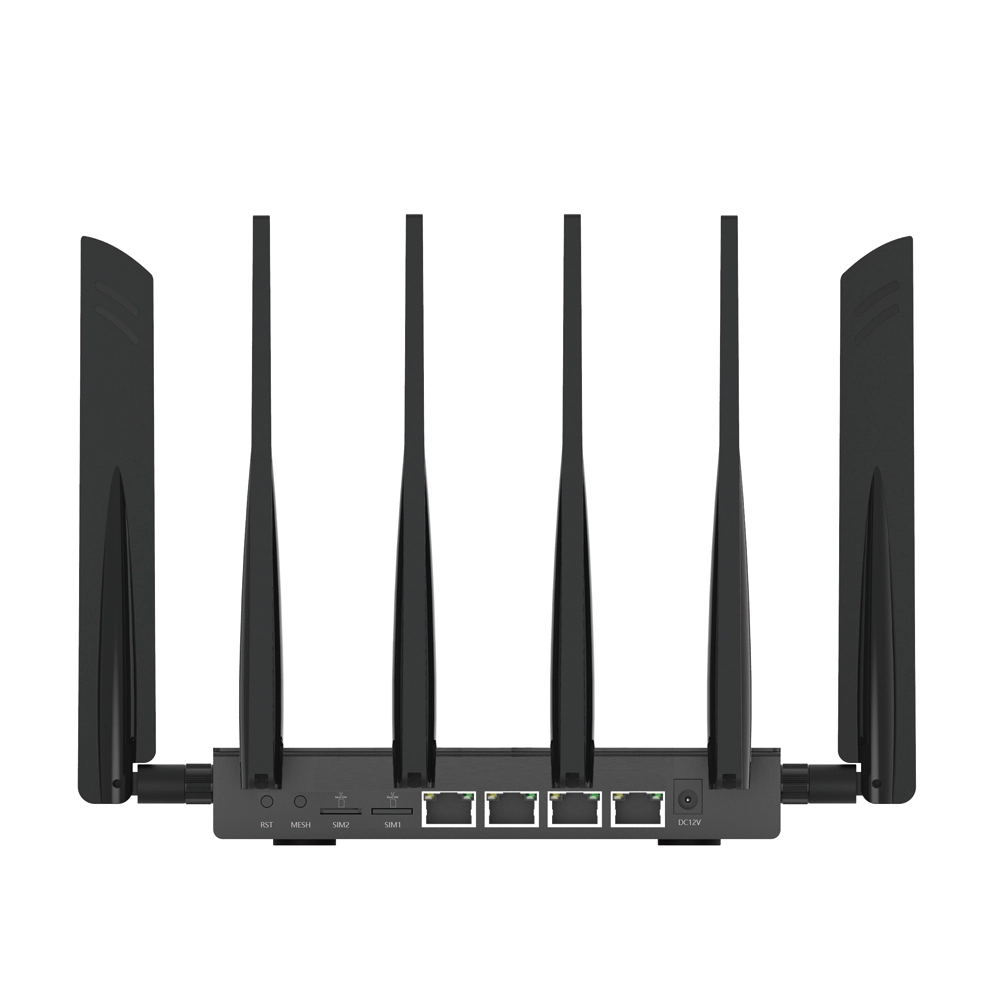

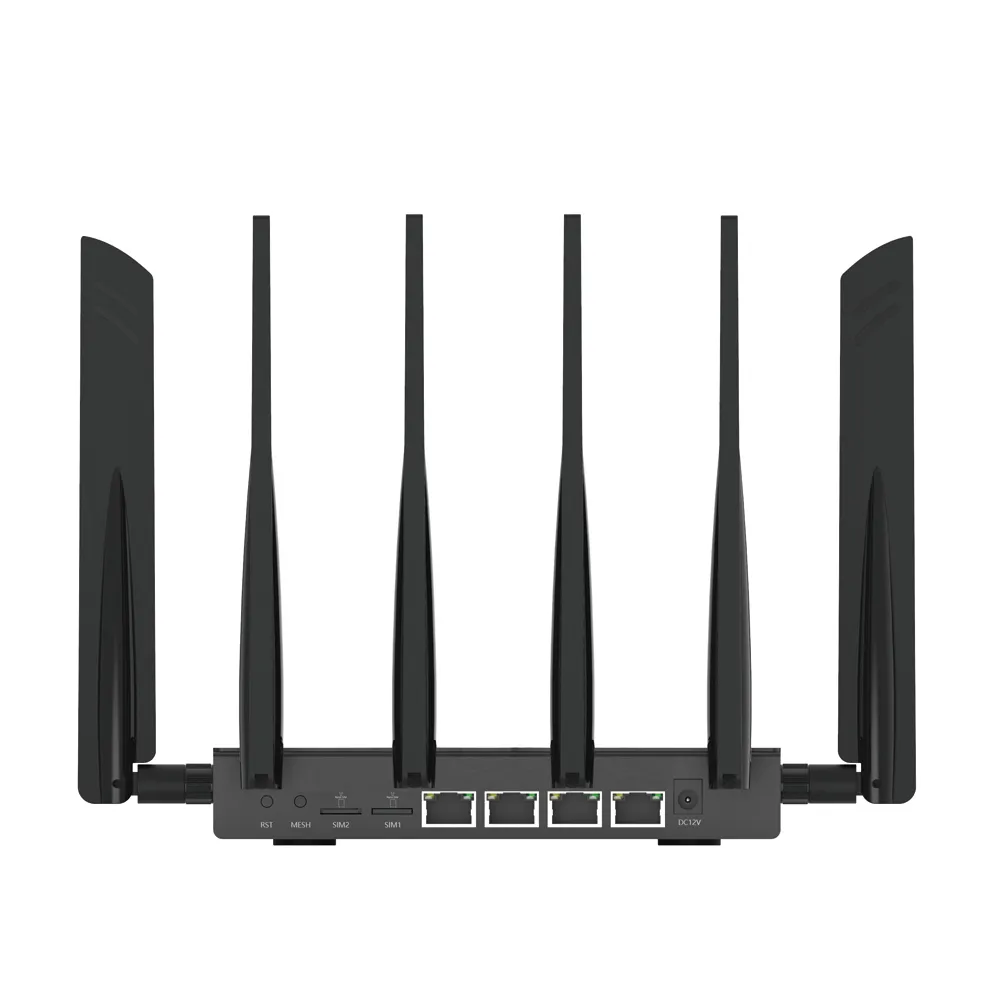

Interface

2*10/100M/1000 LAN

1*10/100M/1000/2500 WAN

1*12V/2A DC Power Input

1 Reset Button

2 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal)

1 Breathing Light Button

1 MESH Networking Button

Network Extension

MESH

Reset

Reset（Long press 10 seconds to restore the factory settings）

MESH

Networking: short press (blue networking light flashes)

LED Indicator

Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal

Operating Environment

Operating Temperature：-20℃～+50℃

Storage Temperature:-40℃～+70℃

Humidity：5％～95％（Non condensation）

Dimension

Device: 180*120*29MM

10pcs/ctn size: 528*400*283mm

G.W.: 20Kg/ctn

Package

Power Adapter*1pc, Quick Start Guide*1pc, 5G CPE Router*1pc
