Description

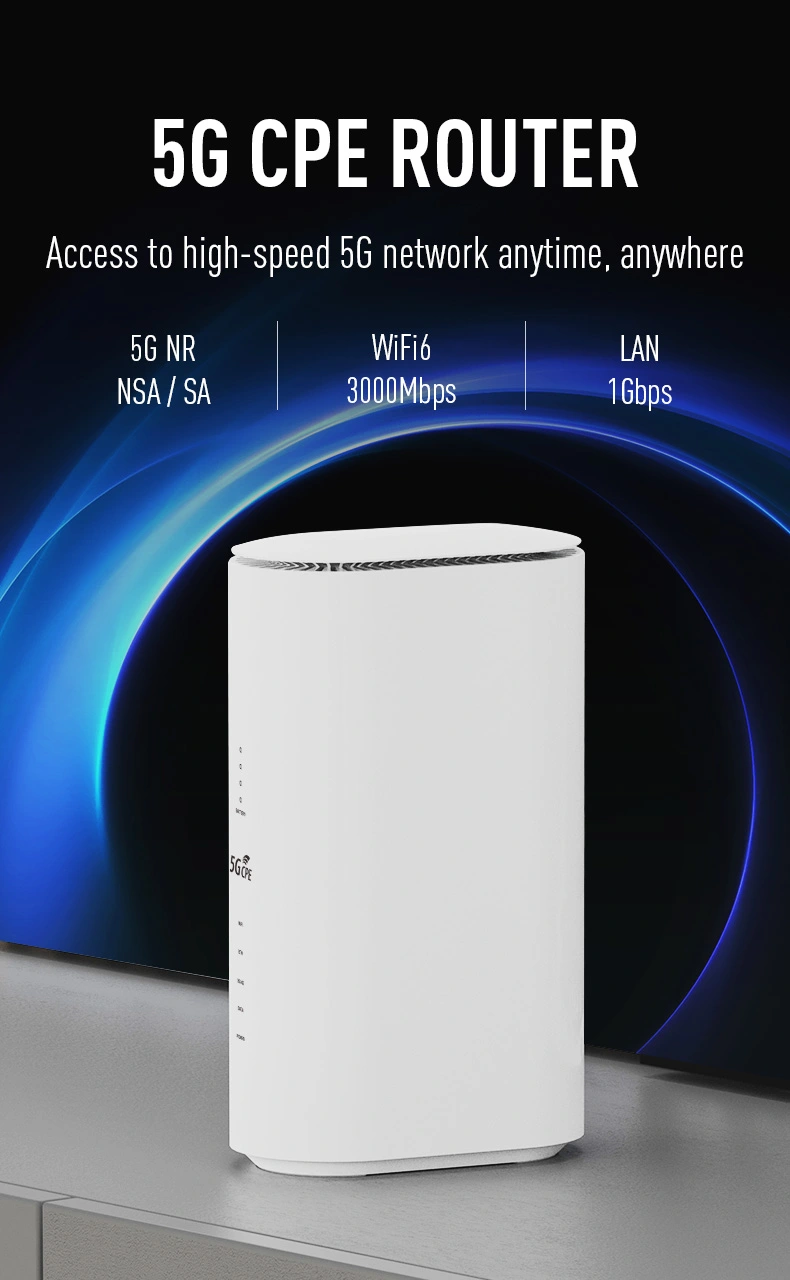

AX3000 wifi 6 dual sim RJ11 optional 5g router wifi

Item no.

HY8600

CPU chipset

UNISOC UDX710

Wifi chipset

MT7981+MT7976C

SIM slot

2FF or 4FF(DUAL SIM OPTIONAL)

Network

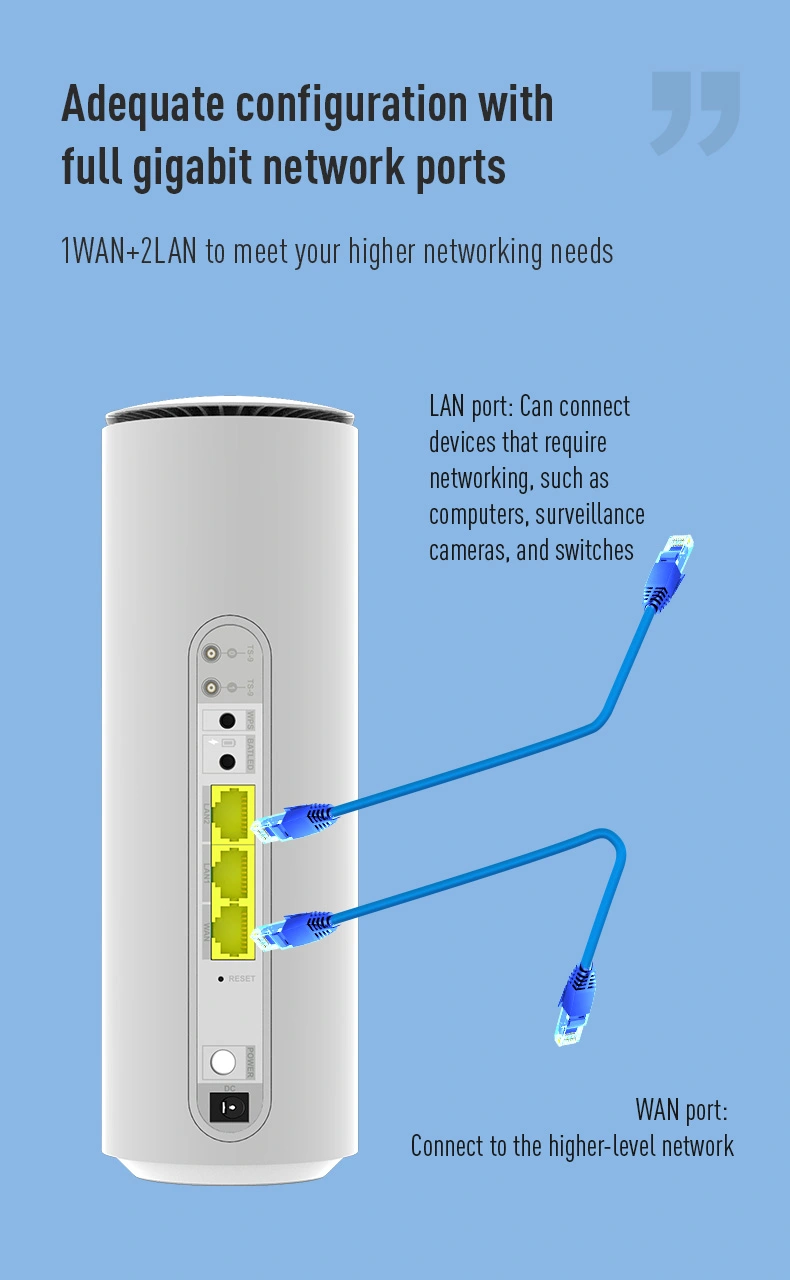

1*1Gbps WAN

2*1Gbps LAN

Voice

1*RJ11 port(optional)

Button

Reset/WPS/Battery level/Power

External antenna

TS9 connector(optional)

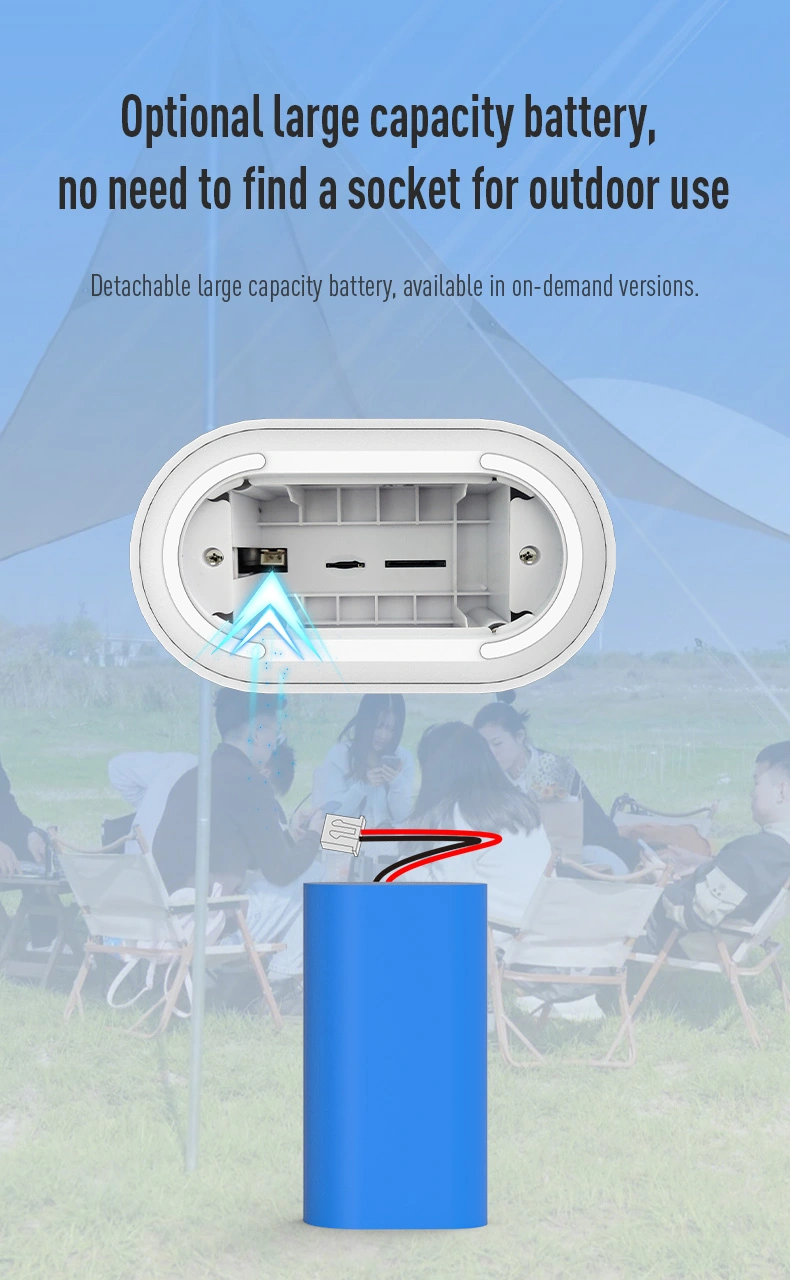

Battery

7.4V(4000mAh or 10000mAh optional)

Type C

Firmware upgrade

Power

Input voltage: 12V/2A

WiFi protocol

3GPP Rel.15，5G NR，SA/NSA，Sub 6G/LTE Category 12

5G EU Frequency

5G SA: N1/3/5/7/8/20/28/38/40/41/77/78

5G NSA: N1/3/7/38/40/41/77/78

LTE

FDD: B1/3/5/7/8/20/28

TDD：B34/B38/B39/40/41

WCDMA：B1/B5/B8

5G CN

Frequency

5G NR NSA: N41/N78

5G NR SA: N1/N8/N28/N41/N78

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B34/B38/B39/B40/B41

Throughput

5G NR Sub-6GHz:

- MIMO 4*4, 256QAM

- Downlink up to 2.0Gbps

- Uplink up to 900Mbps

LTE：Downlink/Uplink up to 400Mbps/150Mbps

WCDMA：Downlink/Uplink up to 42.2Mbps/5.76Mbps

MIMO

EU

NR DL support 4*4MIMO (N1/3/7/38/40/41/77/78)

NR UL support 2*2MIMO (N38/41/77/78)

CN

NR DL support 4*4MIMO (N1/41/78)

WIFI antenna

Internal antenna

Frequency

2.4 GHz WLAN: 2.400–2.4835 GHz

5 GHz WLAN: 5.150–5.850 GHz

WiFi protocol

IEEE 802.11 a/b/g/n/ac/ax

Rate

2 × 2(2SS) 11ax 2.4G+ 3 × 3(2SS) 11ax 5G up to 3000Mbps

2.4G Max. transmitter power

for WiFi

802.11b/1Mbps  22dbm

802.11g/54Mbps   20dbm

802.11n/HT40 MCS7   19dbm

802.11ax/HE40 MCS11   18dbm

5G Max. transmitter power for WiFi

802.11a/54Mbps   20dbm

802.11n/HT40 MCS7   18dbm

802.11ac/VHT80 MCS9   18dbm

802.11ax/HE160 MCS11   16dbm

Language

English&Chinese

APN Setting

Support

Device Settings

Support

WIFI Settings

Support

Routing Settings

Support

Firewall Settings

Support

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Device: 20.9*12.5*7cm

Dimension

10pcs/ctn size: 40x21.5x46.5cm

G.W.: 8.0Kg/ctn
