Description

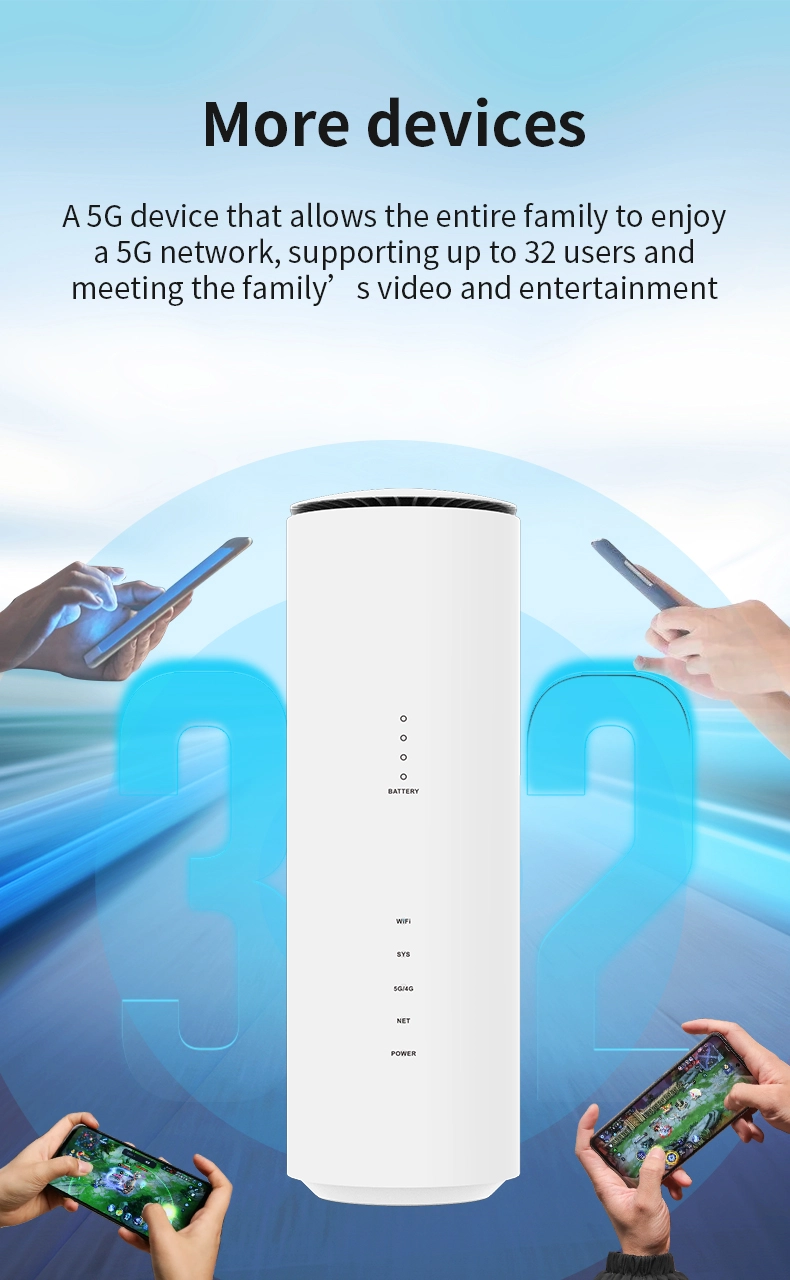

Dual sim card NSA SA 2.4g&5.8g wifi 6 voice sim router 5g

Item no.

HY8500

CPU chipset

UNISOC UDX710/RG500U-EA/Dual-core ARM Cortex-A55 processor 1.35GHz

Wifi chipset

Qualcomm 2064/FC06E

SIM slot

2FF or 4FF(DUAL SIM OPTIONAL)

Lan port

1*1000Mbps

Voice

1*RJ11 port(optional)

Button

Reset/WPS/Battery level/Power

External antenna

TS9 connector(optional)

Battery

7.4V(2000mAh X 2 or 5000mAh X 2)  (optional)

Type C

Firmware upgrade

Power

Input voltage: 12V/1.5A

WiFi

2.4G&5G

5G Frequency

5G NR NSA: n1/3/7/38/40/41/66/77/78

5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/77/78

LTE-FDD B1/2/3/4/5/7/8/20/28/66

LTE-TDD B38/ 40/ 41

3G Frequency

WCDMA B1/B2/B5/B8

3GPP Release

5G NR (3GPP Release 15)

5G Modulation

DL 256QAM, UL 256QAM

4G Modulation

DL QPSK、16QAM、64QAM、256QAM, UL QPSK、16QAM、64QAM

3G Modulation

QPSK、16QAM、64QAM

Max. Transmitter

  Power

5G NR n1/n3/n5/n7/n8/n20/n38/n40/n41/n66：Class 3 (23 dBm ±2 dB)
5G NR n28：Class 3 (23 dBm +2/-2.5 dB)
5G NR n77/n78：Class 3 (23 dBm +2/-3 dB)
5G NR n41/n78 HPUE：Class 2 (26 dBm +2/-3 dB)

LTE B1/B2/B3/B4/B5/B7/B8/B20/B38/B40/B41/B66：Class 3 (23 dBm±2.7 dB)
LTE B28：Class 3 (23 dBm +2.7/-3.2 dB)
LTE B41 HPUE：Class 2 (26 dBm ±2.7 dB)
WCDMA B1/B2/B5/B8：Class 3 (24 dBm +1/-3 dB)

5G NR Feature

DL 4 × 4 MIMO：n1/ 3/ 7/ 38/ 40/ 41/ 66/ 77/ 78
UL 2 × 2 MIMO：n38/ 40/ 41/ 77/78                                                                         NSA ：MAX DL 2.6 Gbps，MAX UL 575 Mbps
SA ：MAX DL 2 Gbps，MAX UL 1 Gbps

LTE Feature

Max：CA：DL 3CC，UL 2CC
      FDD：DL Cat 12，UL Cat 13
      TDD：DL Cat 12，UL Cat 13

Support 1.4/3/5/10/15/20 MHz bandwidth

DL support 2 × 2 MIMO

Max：  DL 600 Mbps    UL 150 Mbps

UMTS Feature

Support  DC-HSDPA HSDPA HSUPA HSPA+ WCDMA

Max：DL 42.2 Mbps  UL  11Mbps

WIFI antenna

Internal antenna

Modulation

DBPSK/DQPSK/CCK/BPSK/QPSK/QAM

WiFi protocol

IEEE 802.11 a/b/g/n/ac/ax

Antenna

Frequency

2.4 GHz WLAN: 2.400–2.4835 GHz                                                                  5 GHz WLAN: 5.150–5.850 GHz

Bandwidth

2.4G   20MHz/40MHz   5G   20MHz/40MHz/80MHz

Rate

1774.5Mbps data rate (2×2 + 2×2 11ax DBS)

2.4G Max. transmitter power

802.11b/1Mbps            21dbm

802.11g/54Mbps           19dbm

802.11n/HT40 MCS7       18dbm

802.11ax/HE40 MCS11     17dbm

5G Max. transmitter power

802.11a/54Mbps           18dbm

802.11n/HT40 MCS7       18dbm

802.11ac/VHT80 MCS9     17dbm

802.11ax/HE80 MCS11     16.5dbm

Wizard

Support

Device info

CPU Usaage/Memory Usage/Online time/Runtime/UUID/software version

Network info

IMEI/IMSI/ICCID/RSRP/RSRQ/RSSI/SINR/PCID/EARFCN/Frequency

DHCP server

Support

DHCP client list

Support

APN Setting

Support

Network Lock

Support

Band Lock

Support

PCI Lock

Support

PIN Management

Support

DHCP Client

Support

WIFI mac filter

White list and Black list

WIFI Broadcast

Support

Hidden WIFI signal

Support

WPS

Support

WIFI Security Type

WPA-PSK/WPA2-PSK

SMS

Support

NTP

Support

Reboot Schedule

Support

Flow setting

Support

Sim card Switch

Support

system log

Support

system upgrade

Local upgrade/FOTA

Reboot and Reset

Support

Signal bar

Support (WEBUI)

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 20.9*12.5*7cm

10pcs/ctn size: 40x21.5x46.5cm

G.W.: 8.0Kg/ctn
