Description

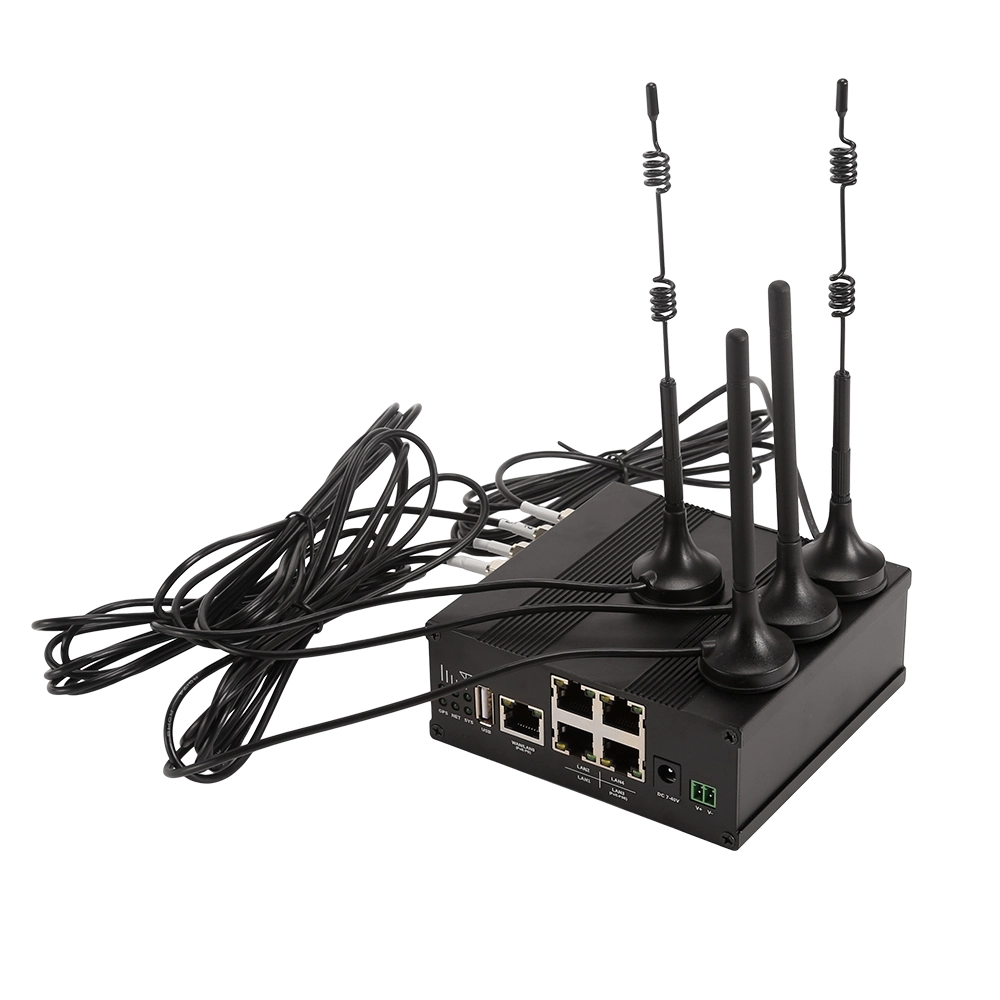

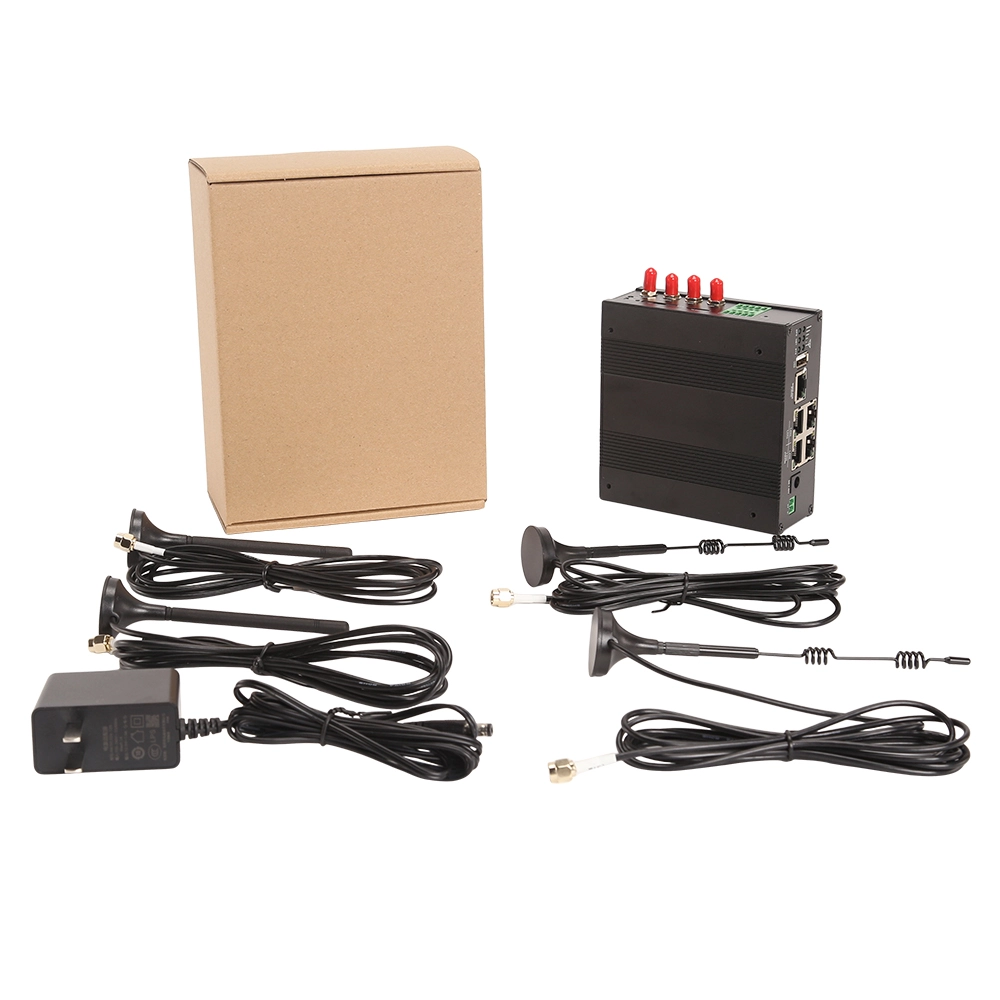

Dual sim 1 WAN 4 LAN industrial router 4g with RS232 RS485 and GPIO port

Item no.

HY8380

CPU

MTK7628N

4g frequency

FDD:B1/3/5/7/8/28

TDD:B40

WCDMA:B1/5/8

GSM:850/900/1800/1900

Remarks: frequency can order make

Network interface

Ethernet interface

5*10/100Mbps Fast Ethernet interfaces, WAN/LAN adaptive (5 LANs in 4G mode)

Max. users

Wired: 253

Wireless: 32

Wi-Fi interface

IEEE 802.11b/g/n

10PIN terminal

Industrial serial interface:

1. RS232/RS485 x 2;

2. RS232 signal: TXD, RXD;

3. RS485 signal: A, B, GND;

4. GND;

5. GPIO port: 2 IO ports, can be configured as DI or DO;

6. 5V power supply terminal: 5V; GND;

SIM slot

2, drawer-type

TF card slot

Plug-in TF card

USB port

convenient for secondary development and expansion

Reset key

1

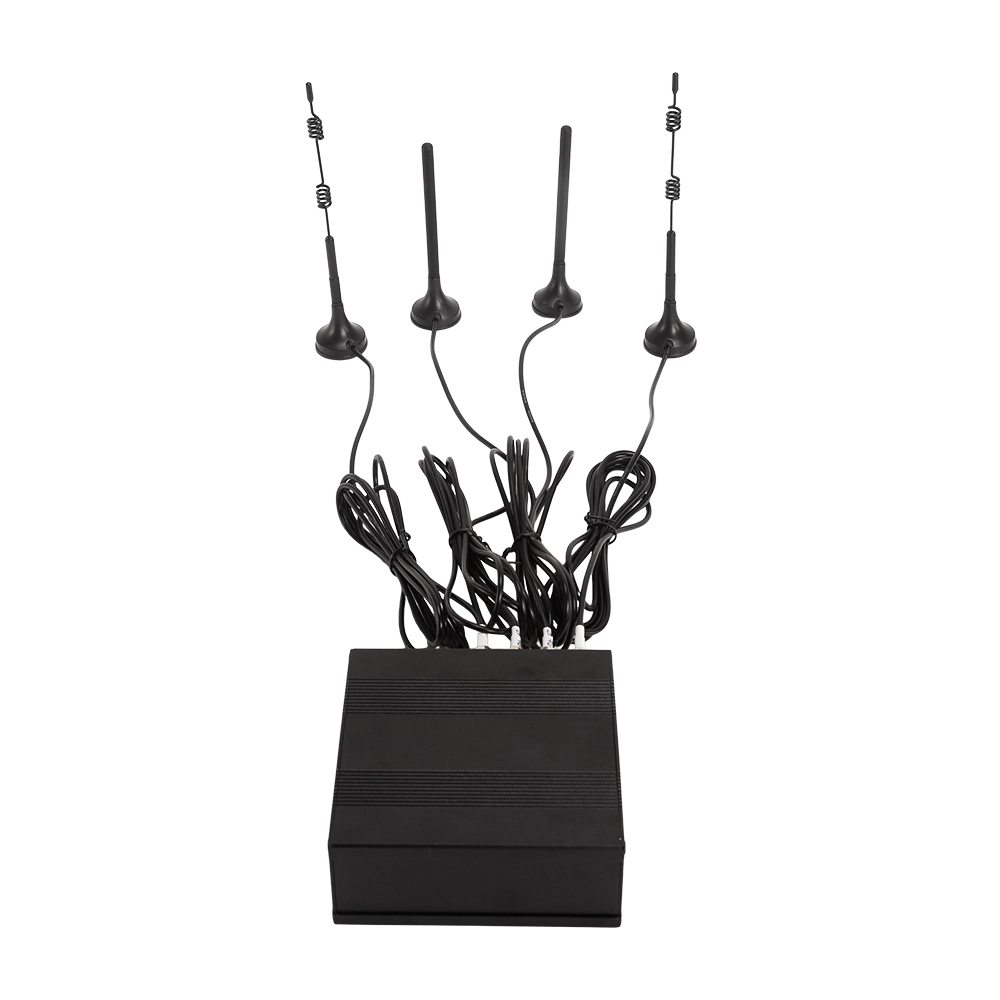

Antenna connector

SMA external rotation inner hole;

3G/4G network: SMAx2;

WLAN: SMAx2;

2.4G wifi

1. Support IEEE 802.11b/g/n;

2. Support wireless area code (country/region channel) selection;

3. Wi-Fi open time control;

4. SSID broadcast time control;

5. Support transmit power adjustment;

6. Single and dual antenna (150Mbps, 300Mbps rate) control;

7. Support Radius authentication;

8. Guest network: You can set up guest WIFI and manage guest Internet access behavior;

9. Wireless bridging: can bridge other WIFI (WDS bridging, etc.);

10. Wireless access control: Internet access control can be performed for MAC (black and white list);

Wi-Fi transmit power

Transmit power

802.11n HT20 MCS7 : +13.5dBm;

802.11n HT40 MCS7 : +13.5dBm;

802.11b CCK: +18 dBm;

802.11g OFDM: +13.5dBm;

Data rate

802.11n: up to 300Mbps;

802.11b: 1, 2, 5,5, 11Mbps;

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;

Receive sensitivity

-66dBm at 150Mpbs;

-73dBm at 54Mpbs;

-86dBm at 11Mpbs;

Network interconnection

Network access

3G/4G dial-up Internet access, support APN and VPDN. Built-in hundreds of APN information around the world, the router can automatically match the Internet after inserting SIM card

Access authentication

CHAP/PAP/MS-CHAP/MS-CHAPV2/none

Network standard

LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS

LAN protocol

ARP, Ethernet，STP

WAN protocol

Static IP, DHCP, PPPoE, PPTP, L2TP

Network protocol

IP application

Support Ping, Traceroute, DHCP server/wireless relay/client, DNS relay, dynamic domain name DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6

IP routing

Support static routing, IGMP Proxy

TTL

Customize the client host TTL value

Network security

Firewall

1. Support Stateful Packet Inspection (SPI) to prevent Denial of Service (DDoS) attacks;

2. Support filtering of multicast/ping packets, access control lists (ACLs);

3. DMZ, MAC filtering, whitelist/blacklist access control;

4. Support NAT, PAT, DMZ, port mapping, virtual server;

AAA

Support local authentication, Radius

Data security

L2TP, PPTP, OpenVPN, CA

Reliability

Backup function

Interface backup, 4G, wired or relay network disconnection mutual backup

Link online detection

1.4G status detection, automatically redial when disconnected or signal is poor;

2.VPN disconnection redial interval definition and dialing times control;

3.WAN sends heartbeat detection packets to detect disconnection and automatically reconnect;

4.Scheduled restart;

Bridge Multi-Gateway

Support multi-LAN settings, the router has two gateways (two intranets)

Internet of Things

DTU

Support TCP, UDP transparent transmission mode, TCP Server mode, command mode

Secondary development (edge computing)

Python development

You can develop your own Python program to meet the project's special functional requirements for the router and greatly shorten the time from customization to deployment.

Shell script

Custom script function to achieve customized management of routers and related functions.

System interface

The router provide a secondary development parameter interface (http), such as obtaining router status, setting router related functions etc., it is convenient for mobile APP, applet, and cloud server development.

Network management

Configuration method

Support local or remote HTTP, HTTPS, Telnet, SSH, and support intranet penetration

Upgrade method

Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote

Log function

1. Support local system log and remote log, important logs are saved when power is off;

2. Support log saving after power failure;

Mechanical properties

Installation

Guide rail, wall mount

Dimensions

Length, width and height: 108*113*44mm (excluding antenna interface)

Shell

aluminum alloy

Protection grade

IP30

Cooling method

Thermal cotton shell heat dissipation

Weight

335g

Power supply

Power interface

DC2.1, 2PIN 3.81 terminal power supply

Power input

DC 5-40V 1A, ultra-high voltage automatic power-off protection, 2 pin terminal plug in

Standby power consumption

100mA@24V (HSPA+ network)

Working power consumption

150mA@24V (HSPA+ network)

Peak power consumption

180mA@24V (HSPA+ network)

Reverse polarity protection

Support

Others

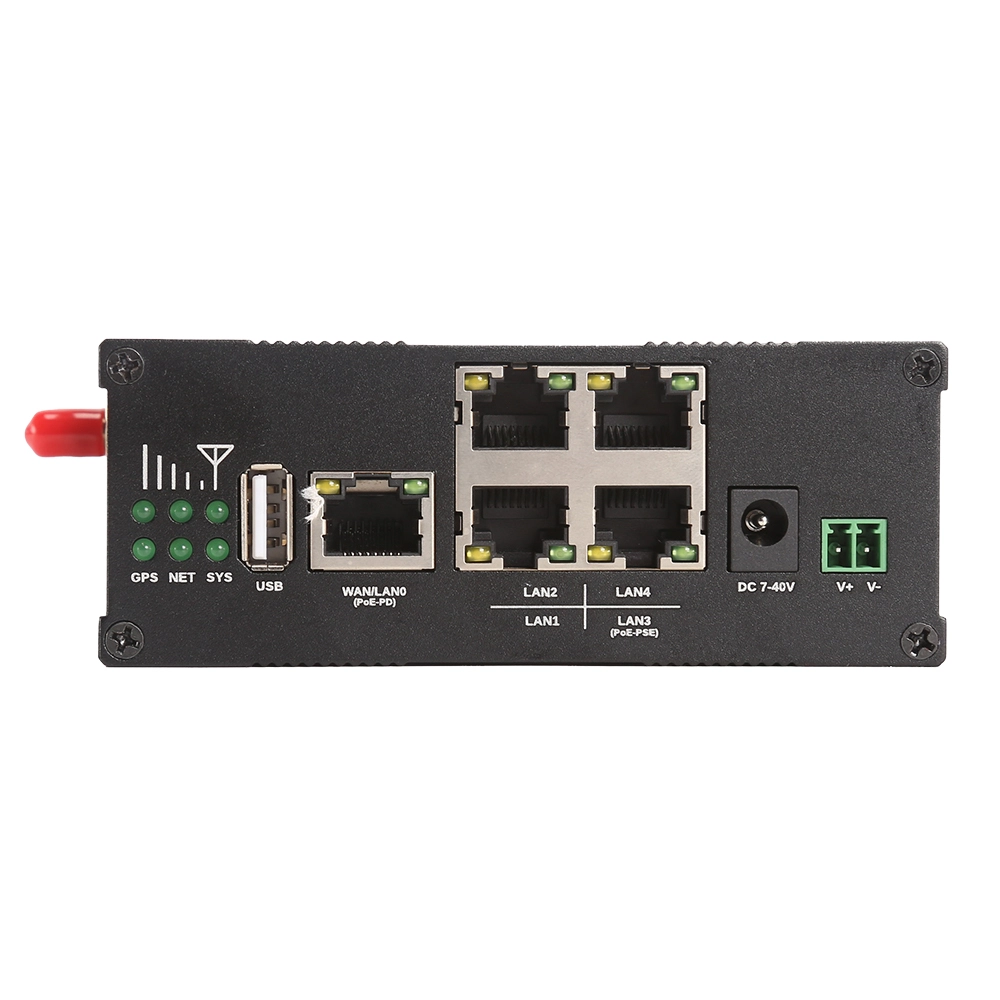

LED

1. Flashes once per second, indicating that the system is operating normally;

2. Fast flashing means the firmware is being upgraded or the reset button is being pressed;

3. NET external network connection indicator;

4. In 4G mode, fast flashing means 4G is dialing;

5. Long light, indicating that the WAN port is connected to the Internet successfully;

6. No light means WAN connection failed;

7. SIG 4G signal strength indicator: When the 4G signal strength is above 90%, the three LED lights will be on; When the 4G signal strength is between 45% and 90%, both LEDs will be on;When the 4G signal strength is below 45%, one LED light will be on;

8. GPS led light when it is in using;

9. When using a SIM card, the corresponding SIM card indicator light;

Physical properties

Shockproof

IEC60068-2-27

Vibration

IEC60068-2-6

Fall

IEC60068-2-32

Other function

1. VPN server: PPTP Server, L2TP Server, OpenVPN Server;

2. VPN client: PPTP Client, L2TP Client, OpenVPN Client;

3. Support PPP, PPOE, DDNS, ICMP, VRRP;

4. Anti-power reverse connection protection; Anti-surge protection; ESD anti-static protection;

5. Software and hardware watchdog anti-crash design will automatically power off and restart the router after it loses network connection, ensuring stable and reliable operation of the device;

6. Automatic detection of network disconnection, automatic restart after dial-up failure, scheduled restart, etc.;

7. Serial port transparent transmission function, you can enter the command control mode through the serial port to control the router and its accessories;

8. Support multiple DDNS dynamic domain name services;

9. Port mapping, DMZ host and other functions;

10. Support Socket server and client modes;

11. Support cloud intranet penetration function;

12. PoE-PD/PSE;

13. GPS positioning;

14. Support base station positioning;

Operating Environment

Operating Temperature: -20°C to +75°C;
Storage termperature：-40°C to +80°C;
Storage Humidity：5%~ 95%;
