Description

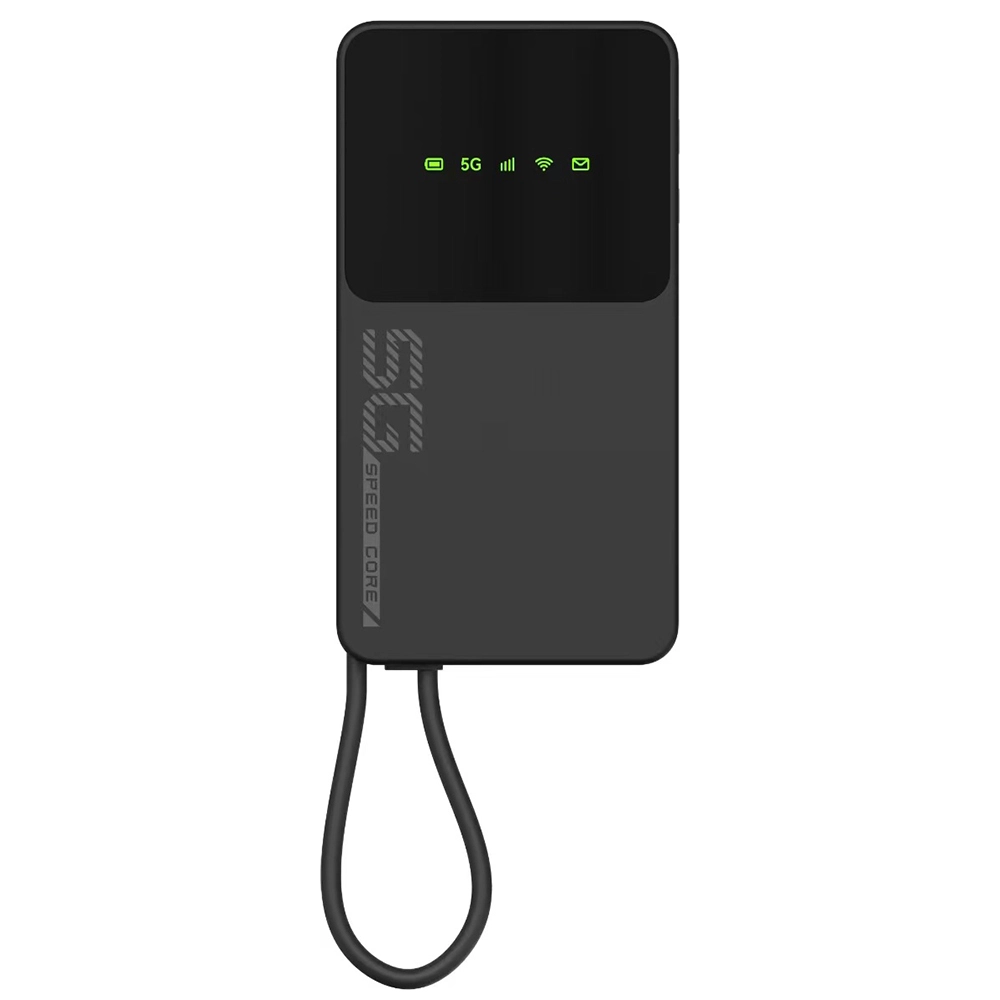

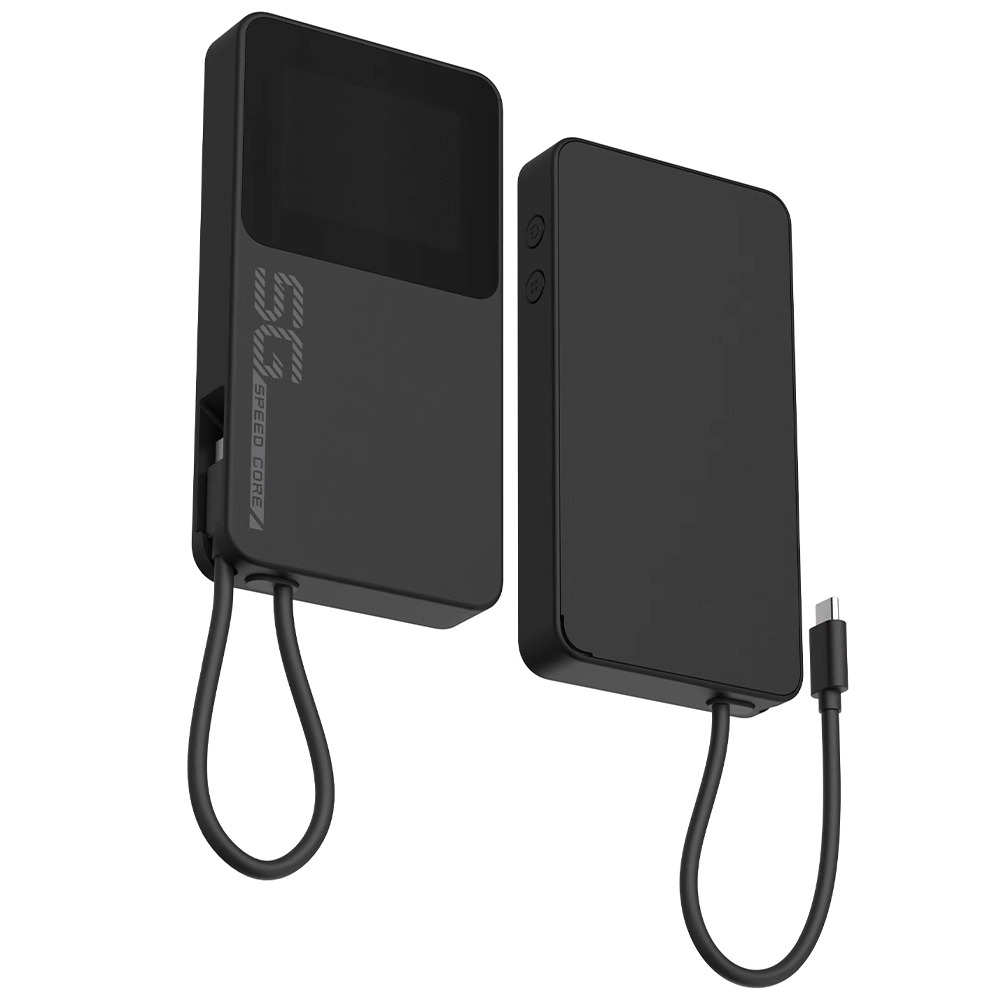

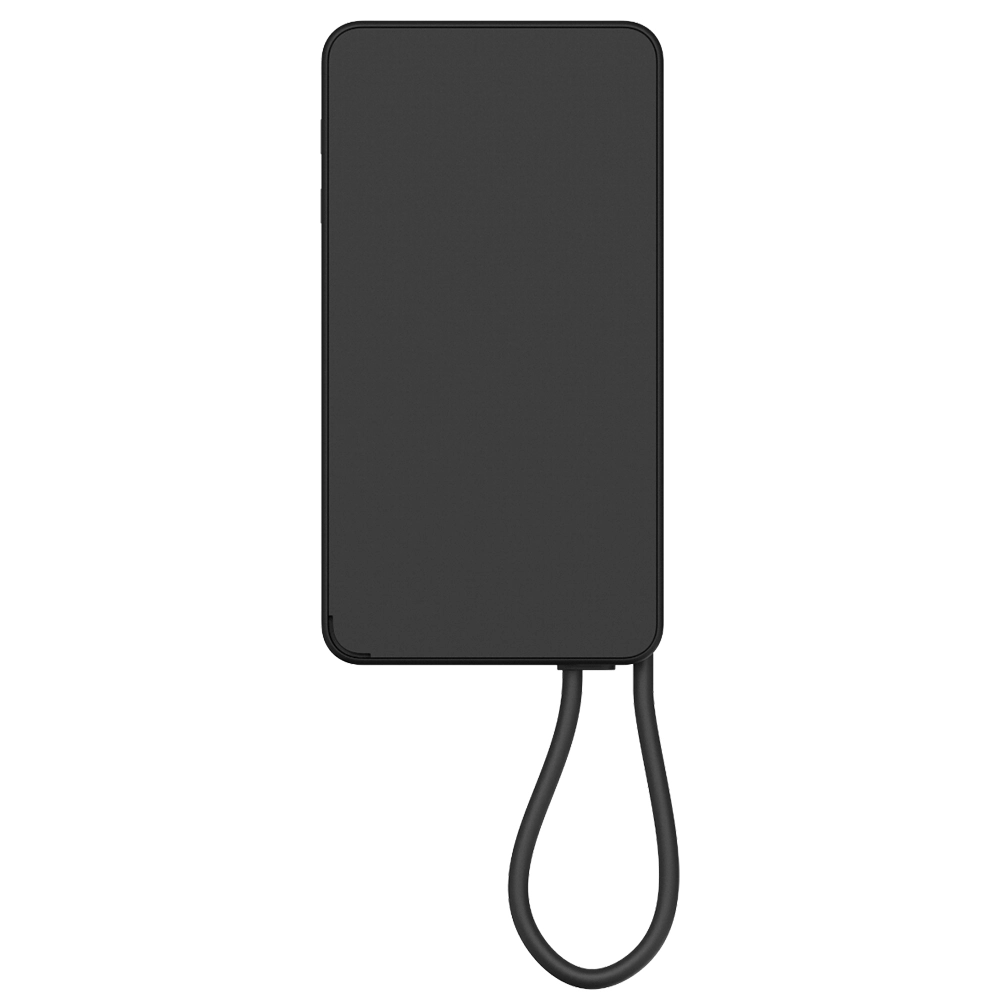

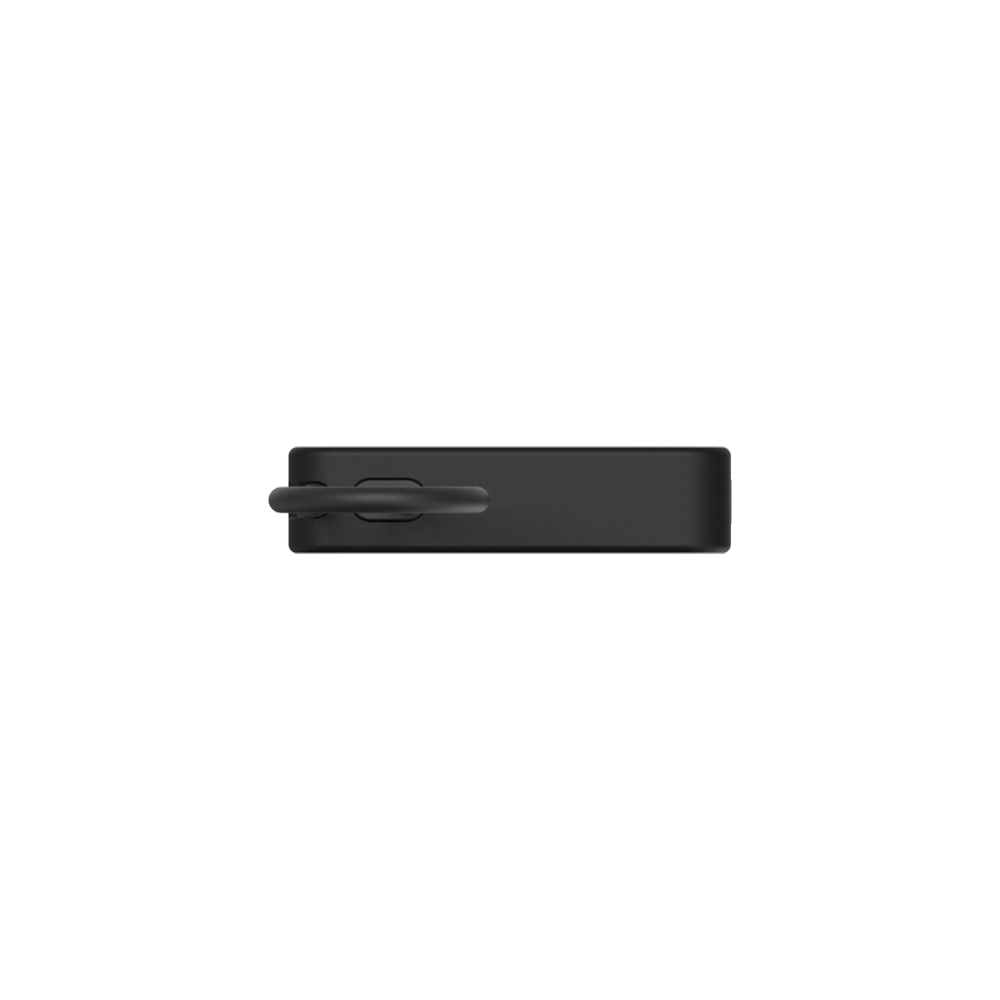

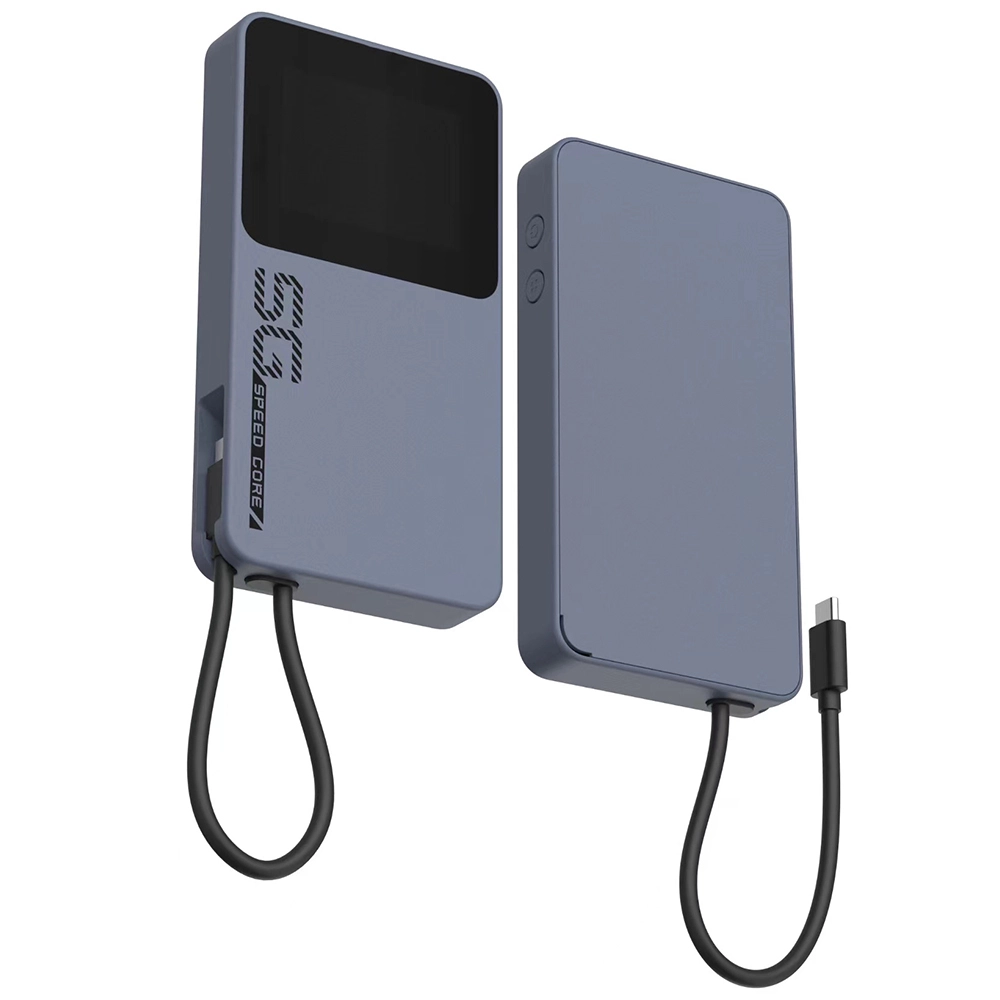

4800mAH Wifi 6 AX1800 NSA SA 2.4’ Touch Panel LCD or LED 5g Pocket Wifi Router

Item no.

HYMF101

CPU

MT8863T+SWT6621s

Memory

1GB DDR4+8GB eMMC Android (512MB DDR4+4GB eMMC Linux )

Interface

1xMulti-purpose Button (Power on/off , Determine the model selection)

1xReset Button

1xSelect Button

1x4FF Nano SIM Slot

USB

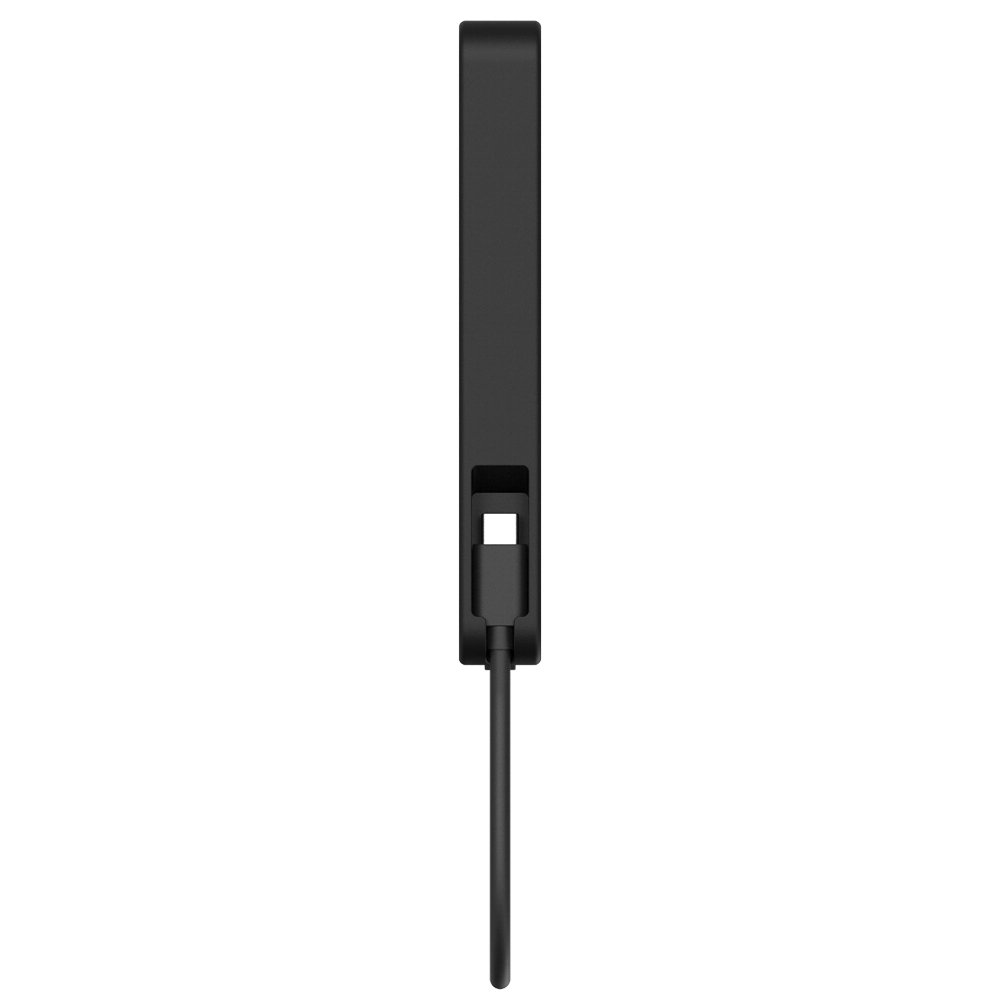

Type-C USB 3.0

Display

2.4 inch LCD or LED

Battery

4800mAh

Antenna

6xinternal cellular antennas

1xinternal 2.4GHz&5GHz WiFi & BLE antennas

Protocol

3GPP Release 16 NSA/SA operation, Sub-6 GHz

LTE DL Cat 13/UL Cat 18

5G NR Modulation

SCS 15 kHz and 30 kHz

Option 3x, 3a, 3 and Option 2

UL 256QAM and DL 256QAM modulations

4G LTE Modulation

1.4/3/5/10/15/20 MHz RF bandwidths

UL QPSK, 16QAM, 64QAM and 256QAM modulations

DL QPSK, 16QAM, 64QAM and 256QAM modulations

Band

5G NR: n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n71/n75/n76/n77/n78/ (n79*)

4G LTE:  B1/B3/B5/B7/B8/B18/B19/B20/B21/B26/B28/B32/B71/B38/B40/B41/B42/B43

3G: B1/B5/B8

Frequency can be order make

Throughput

5G NR NSA Mode: 2.5Gbps (DL) / 1.25Gbps (UL)

5G NR SA Mode: 3.27Gbps (DL) / 1.25Gbps (UL)

4G LTE Mode: 400Mbps (DL) / 211Mbps (UL)

Wifi Protocol

Wi-Fi 6, 802.11b/g/n/ac/ax

2.4GHz&5GHz Dual-Band Wi-Fi

Wifi Throughput

2.4 GHz WiFi MIMO 1x1/40MHz 300Mbps

5GHz WiFi MIMO 1x1/80MHz 600Mbps

Max Users

8 WIFI Connections

Network Management

MAC Address Filtering

NAT Firewall

VPN

DMZ

IP passthrough

Static IP

Wi-Fi Management

SSID Broadcast/Hiding

WEP/WPA-PSK/WPA2-PSK

Wi-Fi MAC Filter

Security

Firewall Switch

DMZ

Port Forwarding

Port Filter

IPv4v6 dual stack

DHCP server

DNS

ARP

ICMP

NAT

System Upgrade

Local firmware upgrade

FOTA/PC remote upgrade

Remote Management

Web-UI Management

Power Supply

5V/2A Power In (Up to PD3.0/18W)

Operating Environment

Operating Temperature:Normal: 0°C to +45°C;

Operating Temperature: -20° C to +70° C

Operating Humidity: 5%~ 95%

Storage Humidity: 5%~ 95%

Package

1xMiFi Device

1xLi-ion Battery

1xData Cable

1xQuick Guide

Dimension

Device: 108x64.5x15.5mm;

0.47Kg/pc
