Description

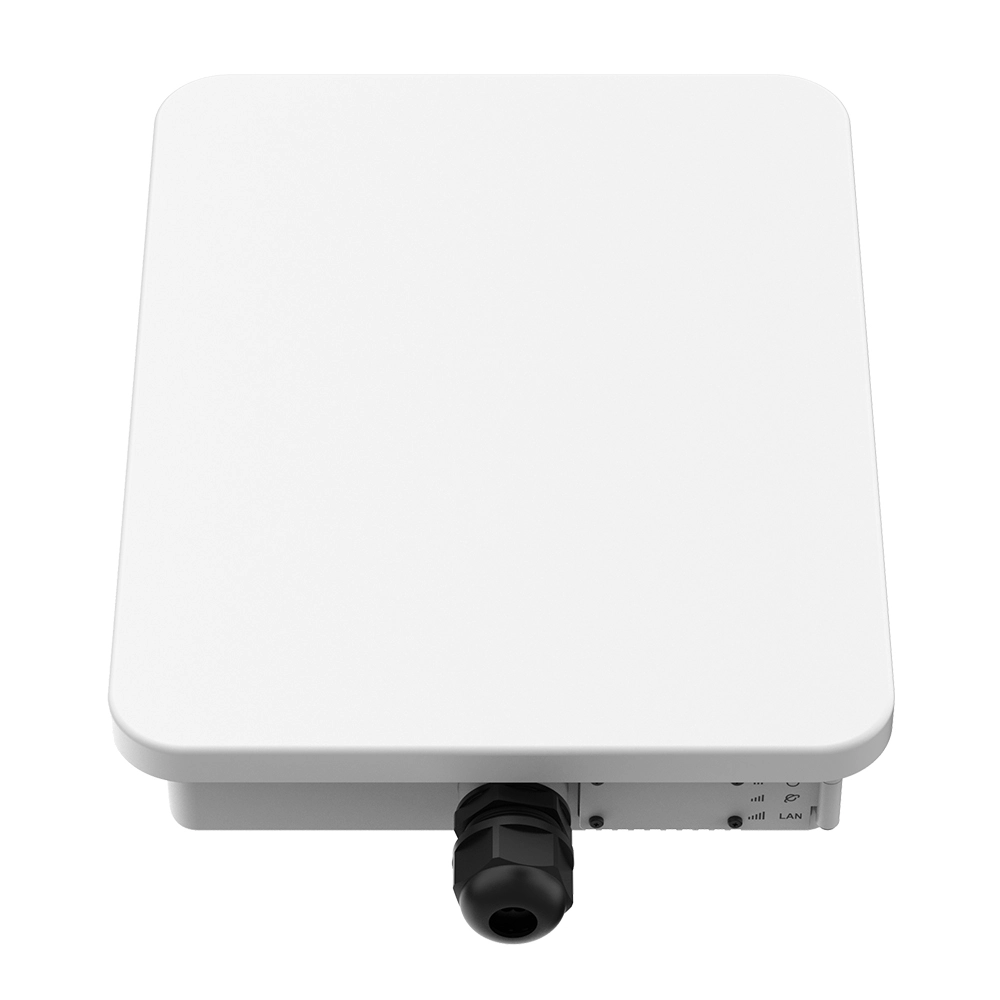

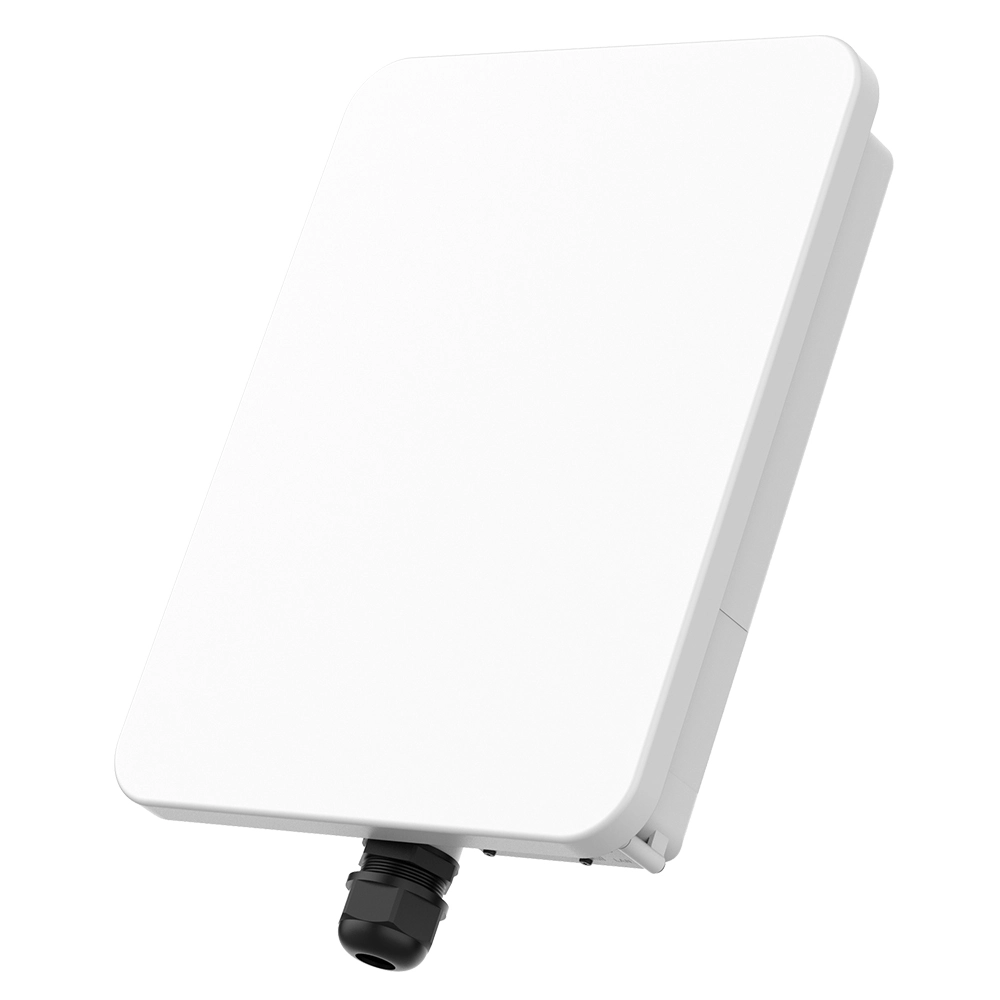

X75 POE IP65 LTE Cat 20 USB 3.1 Type-C 5G Sub-6GHz mm Wave outdoor 5g cpe with 10Gbps Ethernet port

Item no.

HYOG50FQT

Chip set

Qualcomm SDX 75 LGA

Memory

1GB LPDDR4x + 4GB NAND Flash

Technical Standard

Cellular: 3GPP Release 17;

USB: USB3.1 Type-C;

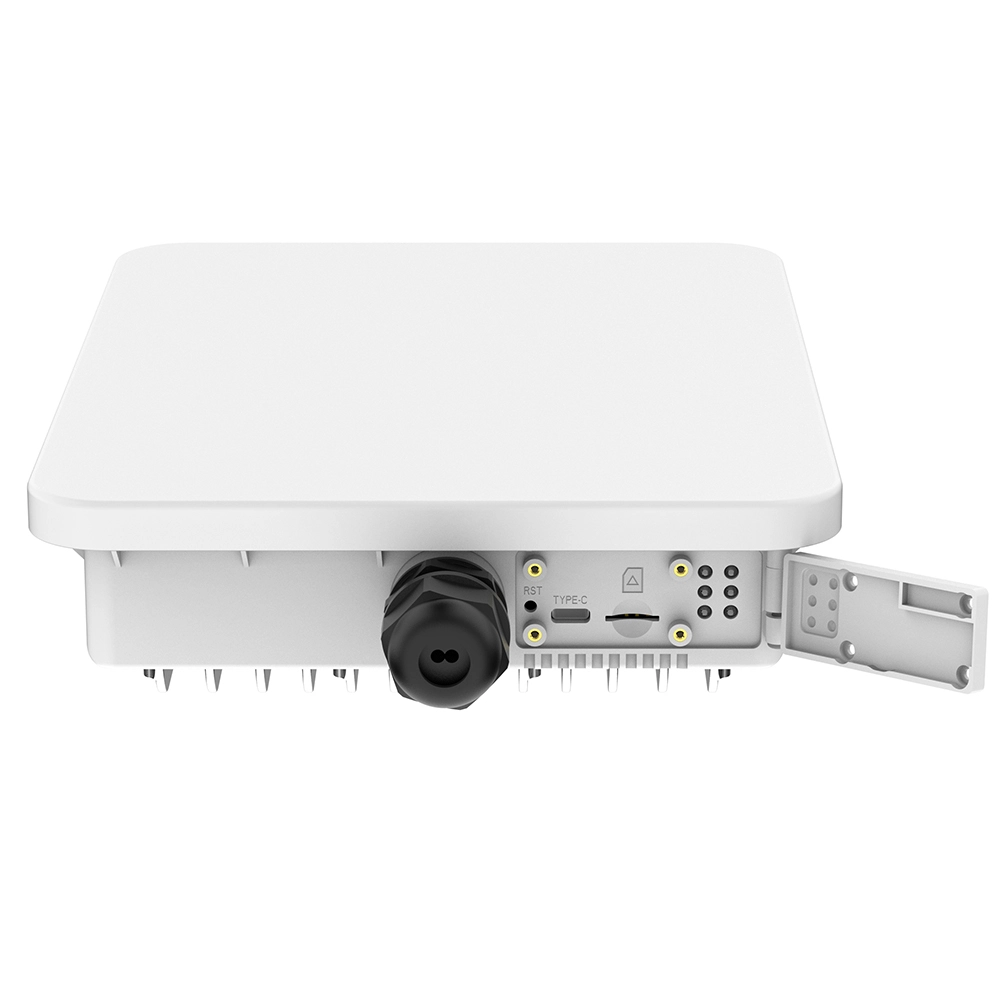

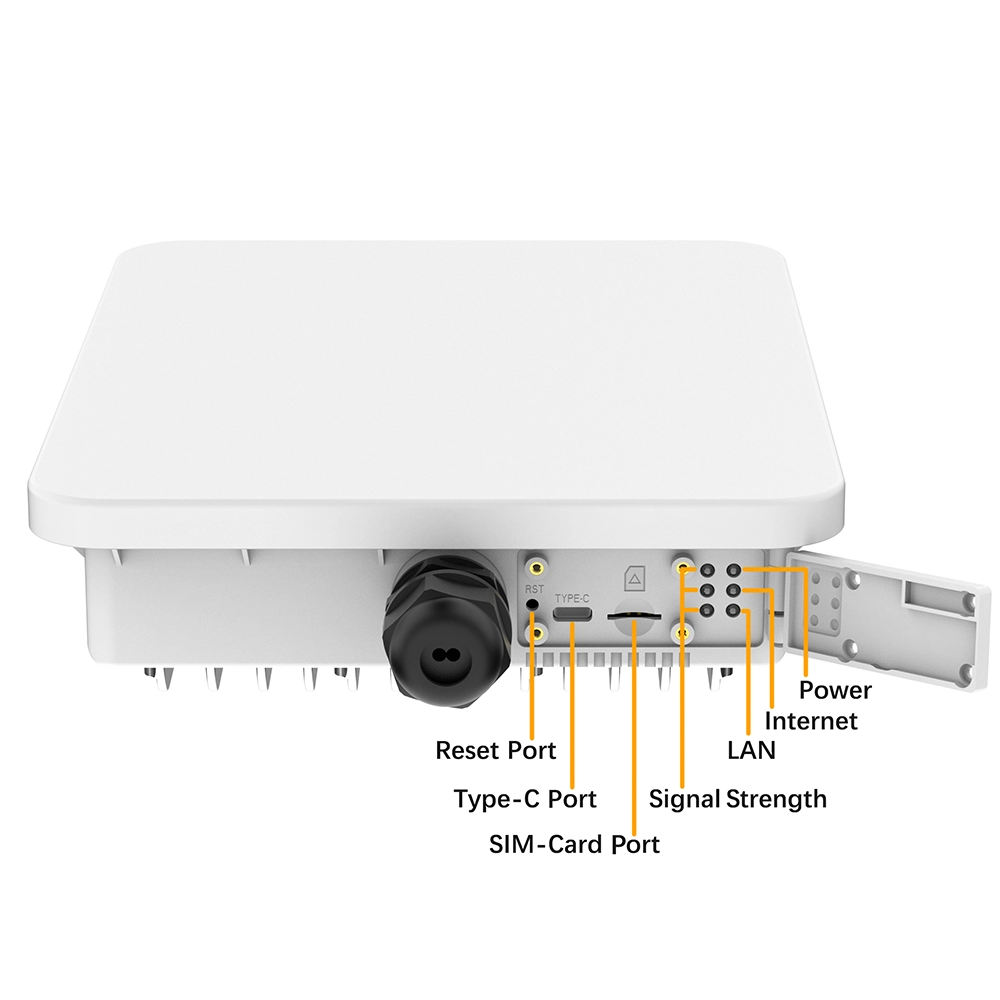

Device Interfaces

1x10Gbps GE Ethernet port;

6xLED indicator PWR, LAN, 5G, Signal Strength LEDs*3;

1xSim Slot;

1xReset button;

1xUSB Port (USB3.1 Gen2 Super-speed Type-C);

Standards

IEEE 802.3u         Fast Ethernet;

IEEE 802.3ab        Gigabit Ethernet;

IEEE 802.3bz        2.5Gigabit Ethernet;

IEEE 802.3bz        5Gigabit Ethernet;

IEEE 802.3ae        10Gigabit Ethernet;

IEEE 802.3bt         73.1W POE;

Modulation

LTE DL: 256QAM, UL: 256QAM;

SA DL: 1024QAM, UL: 256QAM;

NSA LTE DL: 256QAM, UL: 256QAM;

NSA NR DL: 1024QAM, UL: 256QAM;

Antennas

8x internal sub-6G antennas (The 3~7dBi Internal directional antenna for sub6G-Hz);

4x internal mm Wave antennas array (For enhancement on 5G NR and mm Wave 14.5dBi/17.5dBi/20.5dBi mm Wave antenna);

5G/LTE Frequency

FG190W-EAU:

5G NR SA:

DL 4×4 MIMO: n1/3/5/7/8/20/26/28/38/40/41/75/76/77/78;

UL 2×2 MIMO:n1/3/5/7/8/28/38/40/41/77/78;

5G NR NSA:

DL 4×4 MIMO LTE:   B1/3/5/7/8/20/28/32/38/40/41/42/43;

DL 4×4 MIMO NR:   n1/3/5/7/8/20/26/28/38/40/41/75/76/77/78;

5G NR mmWave: n257/258/260/261;

LTE: DL 4×4 MIMO

FDD: B1/3/5/7/8/20/28/32,

TDD: B38/40/41/42/43;

WCDMA: DL 2×2 MIMO B1/5/8;

FG190W-NA:

5G NR SA:

DL 4X4MIMO:   n2/5/7/12/14/25/26/30/38/41/66/70/71/77/78;

UL 2X2 MIMO: n25/41/48/66/71/77/78;

5G NR NSA:

DL 4X4 MIMO NR: N2/5/7/12/14/25/30/38/41/66/71/77/78;

LTE: DL 4X4 MIMO   B2/4/5/7/12/13/14/17/25/26/30/38/41/42/43/48/66/71;

DL 4×4 MIMO LTE:

FDD: B2/4/5/7/12/13//14/17/25/26/29/30/66/71,

TDD: B38/41/42/43/48;   .

mmWave: n257/258/260/261;

Frequency can order make

5G/LTE Throughput

5G SA Sub-6: 6.18Gbps (DL)/900Mbps (UL);

5G SA +mmW: 10Gbps (DL)/3.38Gbps (UL);

5G NSA Sub-6: 4.92Gbps (DL)/555Mbps (UL);

5G NSA +mmW: 8.8Gbps (DL)/2.6Gbps (UL);

LTE: 2Gbps (DL)/211Mbps (UL);

WCDMA: 42Mbps (DL)/5.76Mbps (UL);

MIMO

Sub-6 bands: 4x4 MIMO downlink, 2x2 MIMO uplink;

MmWave: 2x2 MIMO downlink and uplink;

Output Power

FG190W-EAU: 24dBm±0.5dBm;

1*mm Wave 41dBm±0.5dBm;

Software Features

Antenna

3~7dBi Internal directional antenna

WWAN  Profile  Setting

APN: Auto/Manual;

Password;

NAT Mode;

Authentication: NONE/PAP/CHAP/PAP+CHAP;

IP Version: IPv4/IPv6/IPv4v6;

USSD;

Band Lock;

User Name;

Bridge Mode;

Multiple APN;

PIN Manage;

SMS;

Sim Lock;

Neighbor CELL;

Device Information

Device Information: Model Name, Router F/W version, Modem version, CPU info, System up time, Memory info;

Router Status/Modem Status: WWAN IP Address, Subnet Mask, Default Gateway, DNS IP Address;

Client status: Operator name, Network name, Signal strength, Link Status;

Device Management

Administrator Password and Timeout;

Configuration Backup/Restore;

Reboot/Reset to Default;

System log;

Statistics;

Diagnostics(Ping, Trace route, tcpdump, speed test);

System Tools(TR069, stun, snmp);

NTP time setting;

Firewall setting;

Port Forwarding;

Dynamic DNS;

Upgrade Method

Web-base GUI;

FOTA;

TR069;

Physical

IP Rating

IP65

Dimensions

256(H)x196(W)x62(D)mm

Weight

1.5Kg

Power Protection

+- 6kV

Power Consumption

< 70W

POE Power Supply

54V/1.58A

Power Protection

+- 6kV

Operating Environment

Storage Temperature: -40°C to +85°C;

Operating Temperature: -30° C to +75° C

Operating Humidity: 5%~ 95%

Storage Humidity: 5%~ 95%
