Description

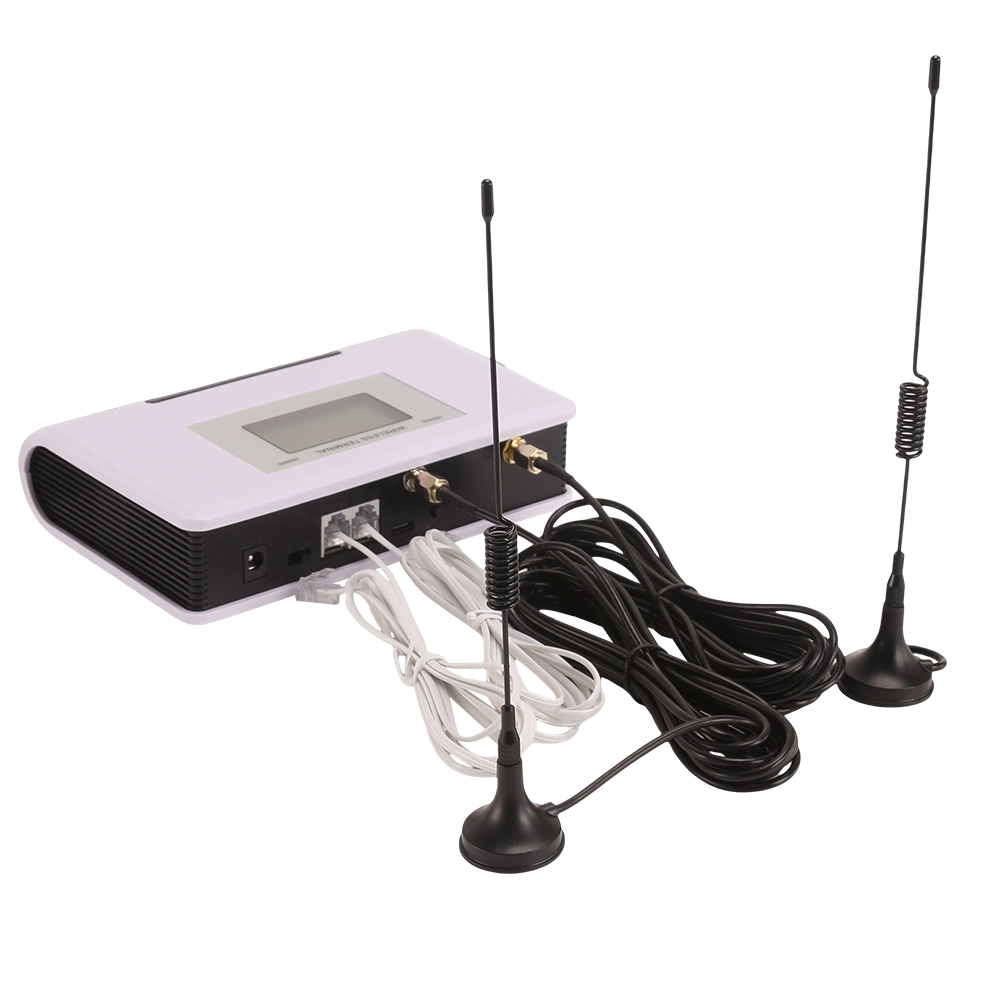

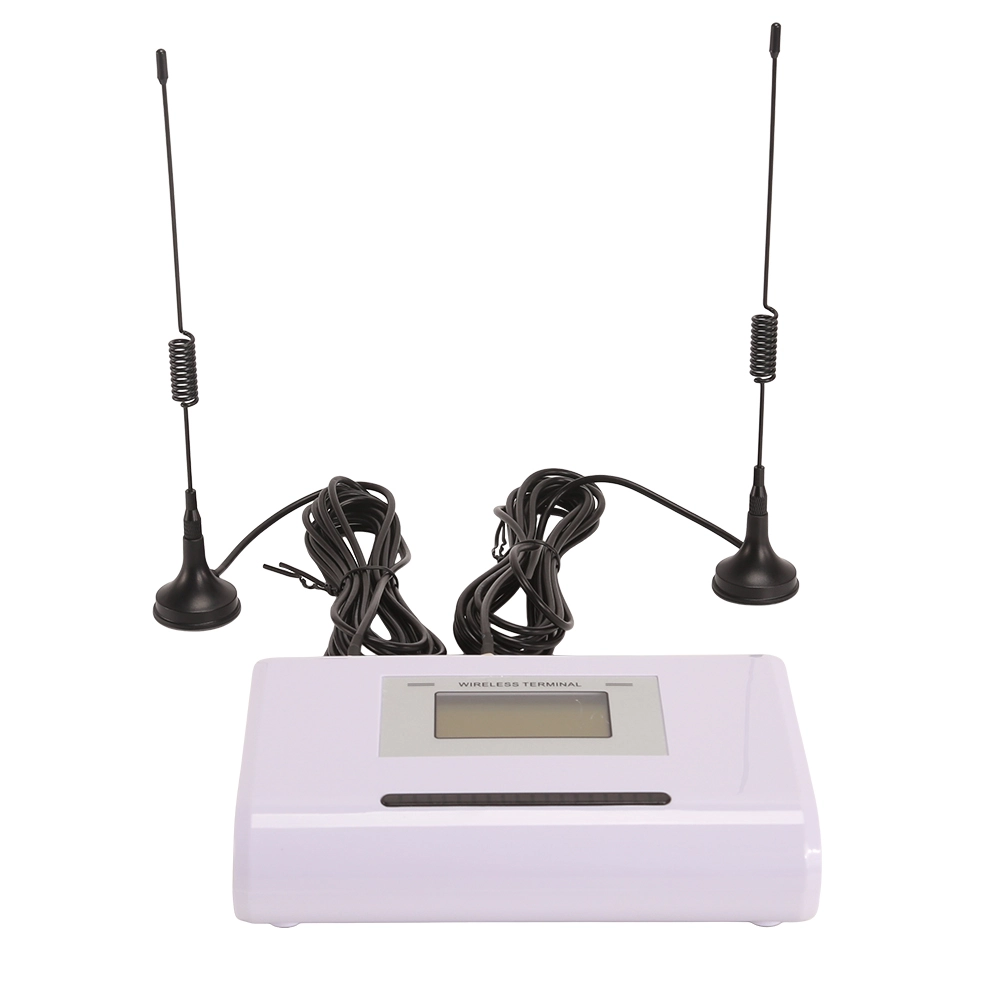

Tpye C port power supply dual sim dual standby dual pass fixed cellular terminal fct with 2 antennas and 2 sim slots

Item no.

A380LCD-GSM-M26-dual sim

Module

Quectel M26

SIM card

Dual sim dual standby dual pass

RJ11 port

2

Polarity reverse

Support

Type C port

Upgrade software or power supply

Caller ID

DTMF or FSK or both

Battery

Optional

Working frequency

GSM850  receiving: 869-894MHz

transmitting: 824-849MHz

EGSM900 receiving: 925-960MHz

transmitting: 880-915MHz

DCS1800 receiving: 1805-1880MHz;

transmitting: 1710-1785MHz;

PCS1900 receiving: 1930-1990MHz

transmitting:1850-1910MHz

RF output power

GSM850 Max.:33dBm+2dB; Min.:5dBm+5dB

EGSM900 Max.:33dBm+2dB; Min.:5dBm+5dB

DCS1800 Max.:30dBm+2dB; Min.:0dBm+5dB

PCS1900 Max.:30dBm+2dB; Min.:0dBm+5dB

RF receiving sensitivity

GSM850 <-109dBm

EGSM900 <-109dBm

DCS1800 <-109dBm

PCS1900 <-109dBm

Output Power

Class 4 (2W): @850/900MHz

Class 1 (1W): @1800/1900MHz

Power supply

3.3-4.6v

Power waste

1.3mA@DRX=5

1.2mA@DRX=9

GPRS speed

Max 85.6kbps (DL)/Max 85.6kbps (UL)

Coding mode

CS 1,2,3,4; USSD

Polarity reverse

support

Protocols

TCP/UDP/PPP/FTP/HTTP/SMTP/CMUX/SSl/PING

Audio characteristic

Half rate: ETS 06.20

Full rate: ETS 06.10

Enhanced full rate: ETS 06.50/06.60/06.80

Speech Codec

HR/FR/EFR/AMR

Echo Arithmetic

Echo Cancellation/Noise Suppression

Adapter

EU, UK, USA, AU adapter etc. optional

SIM connection

1.8V or 3V

Power Supply

Input 100-220V

Output 5V 1A or 12V 1A

Color

Black or white or OEM;

LCD Size:

67*30mm

Antenna

3m antenna or small rubber antenna

Dimension

Device: 160*100*38mm

Pack Box: 180*125*78mm

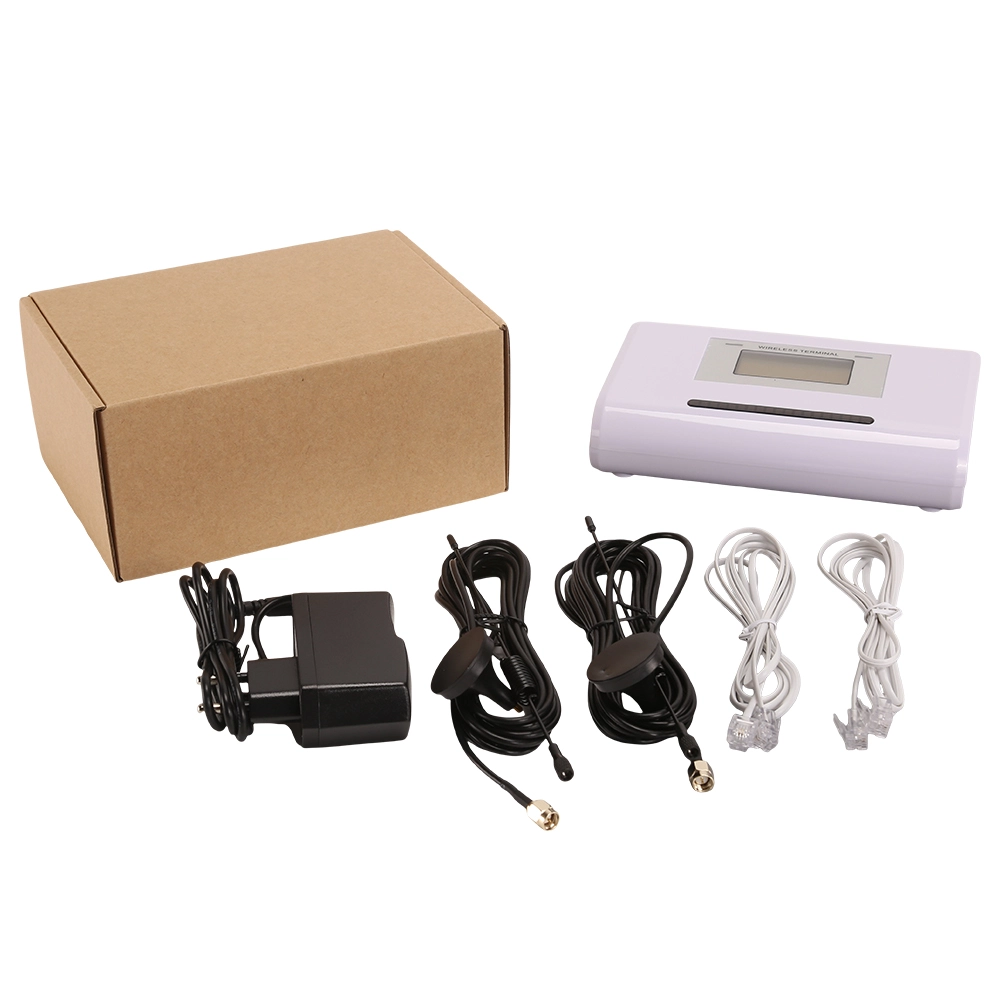

Package

Device*1；

Adaptor*1；

Battery(built in)*1；

Straight Cable*2；

User manual*1；

Antenna*2pcs；

Weight

0.45Kg
